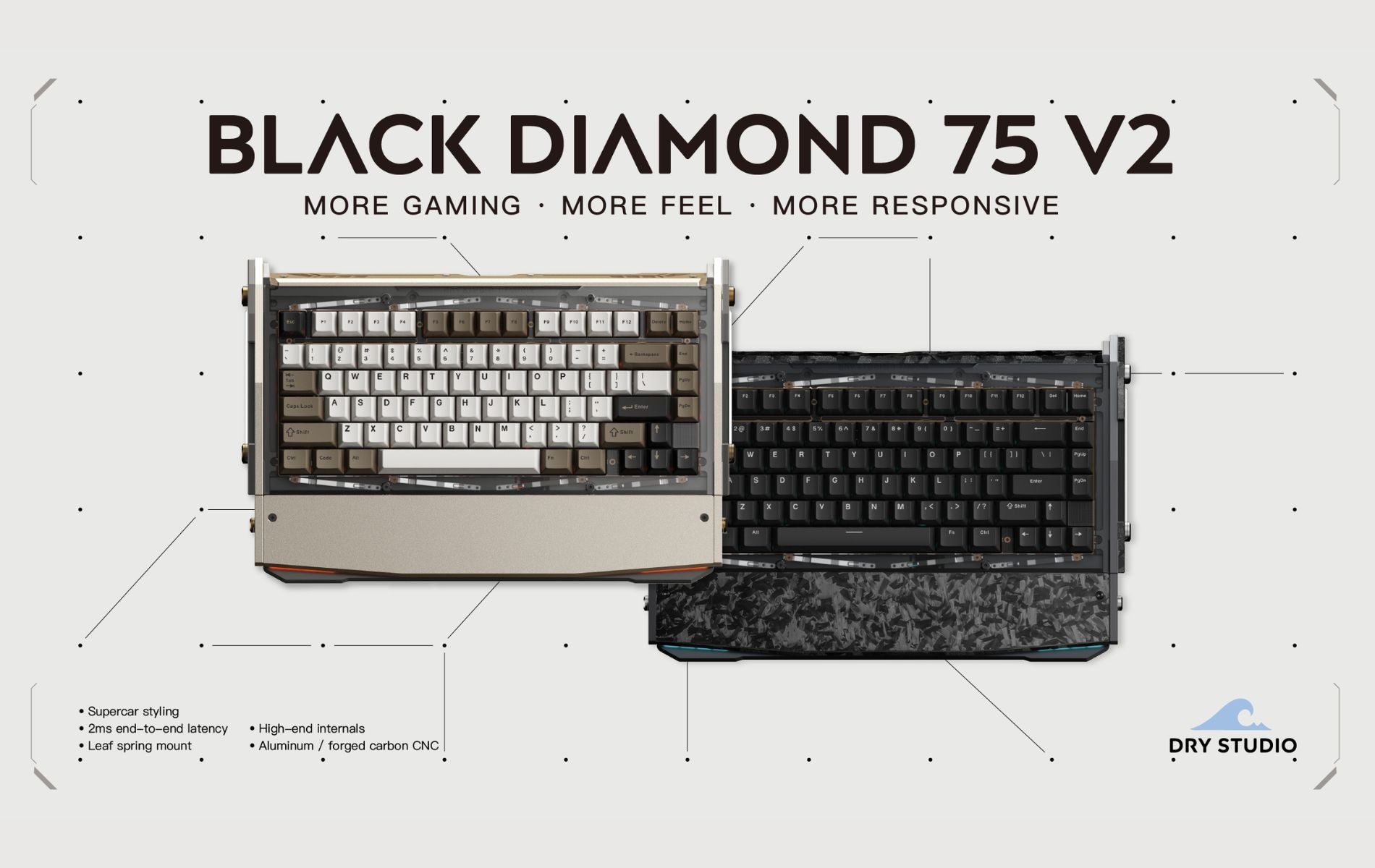

Dry Studio Black Diamond 75
Product Features
- Supercar Styling & Esports Level
- Leaf Spring Mount & Custom Esports Switches
- Tri-Mode Connectivity & Custom Internals
- Custom RGB & DIY Mapping
- Ergonomic Wrist Rest & 5000mAh Battery
- Qi Wireless Charging & Carbon / Mithril Options
What’s in the Box
1. Keyboard body *1
2. Switches *81
3. Stabilizers *4 (2U*3, 6.25U*1)
4. Keycap set *1
5. 2.4G receiver *1
6. USB cable (Type-A to Type-C) *1
7. USB adapter（Type-C to Type-C）*1
Shipping Policy
- Please fill in the full name and detailed shipping address in English and allow 7 business days for processing.
- Freight and taxes are not included in the selling price.
- Once your order has been shipped, we are unable to make any changes to the shipping address.
- Please find detailed information on shipping policy & return policy
Pre-Purchase
- Please fill in your full name and detailed shipping address in English and allow 7 business days for processing.
- We reserve the right to cancel fraudulent orders (including but not limited to unauthorized use of promo codes) without further notice.
- If you refuse to take the receipt of your order or return a product without valid reason, you will be at minimum charged the two-way delivery fees and taxes, depending on the product's condition.
- If a refund request (with valid reason) is approved, the total refund amount may exclude postage and taxes.
- There are some situations where we cannot refund. Please refer to our return policy.
- The product renderings are for reference only. The actual product prevails.
- Differences in angles and lighting while shooting may cause color differences. The actual product prevails.
- Please join our Discord for more info: https://discord.gg/angrymiao, https://discord.gg/drystudio

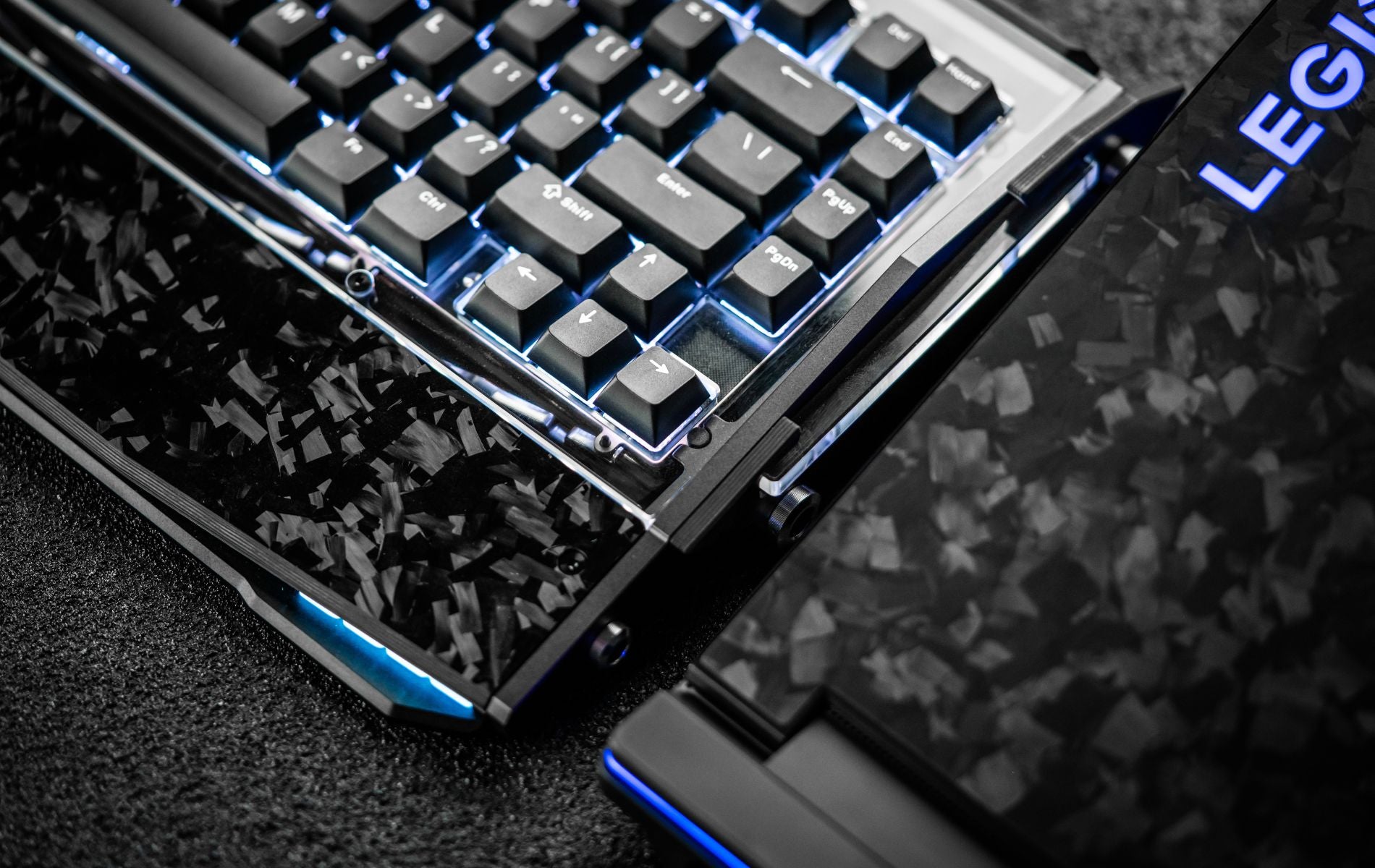

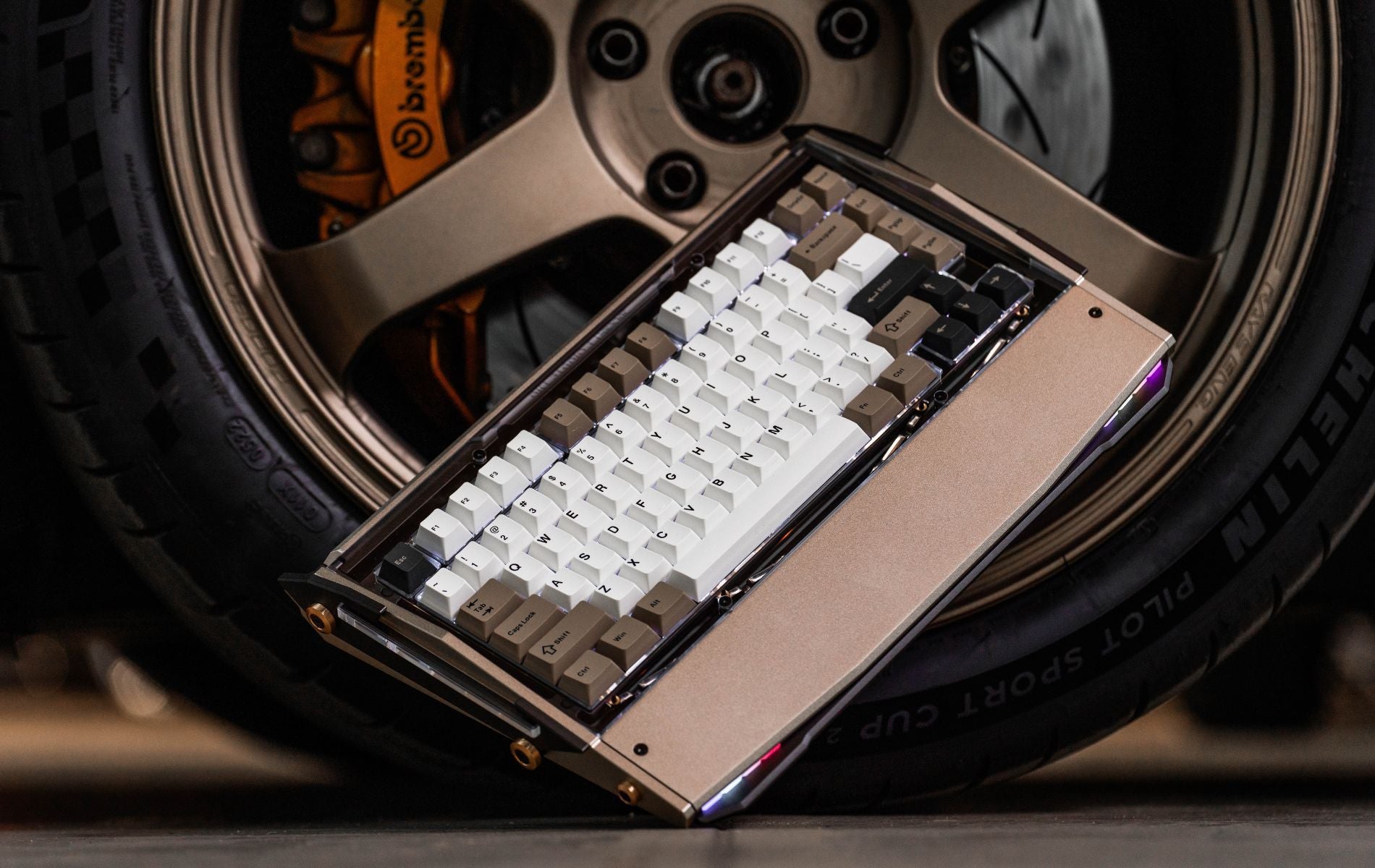

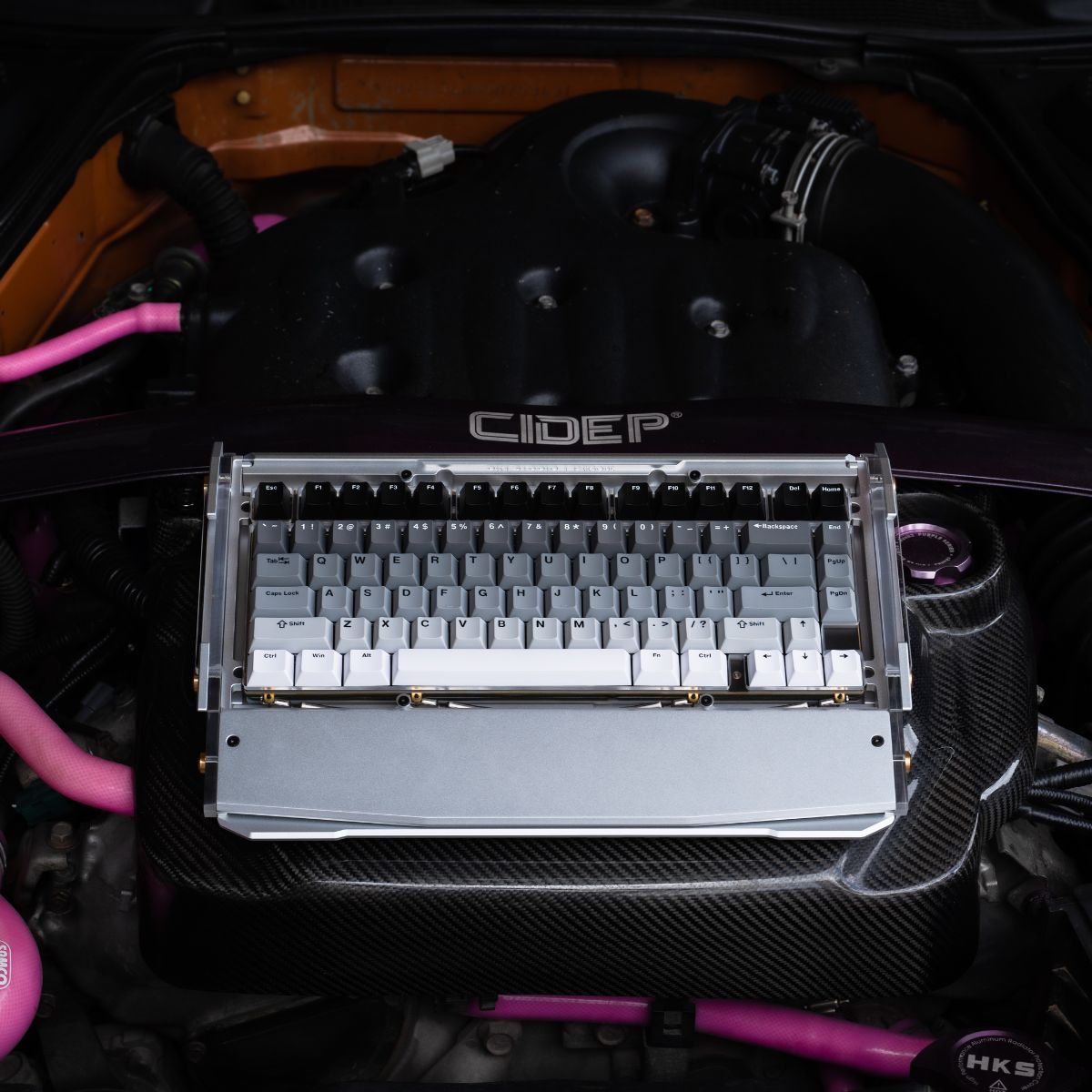

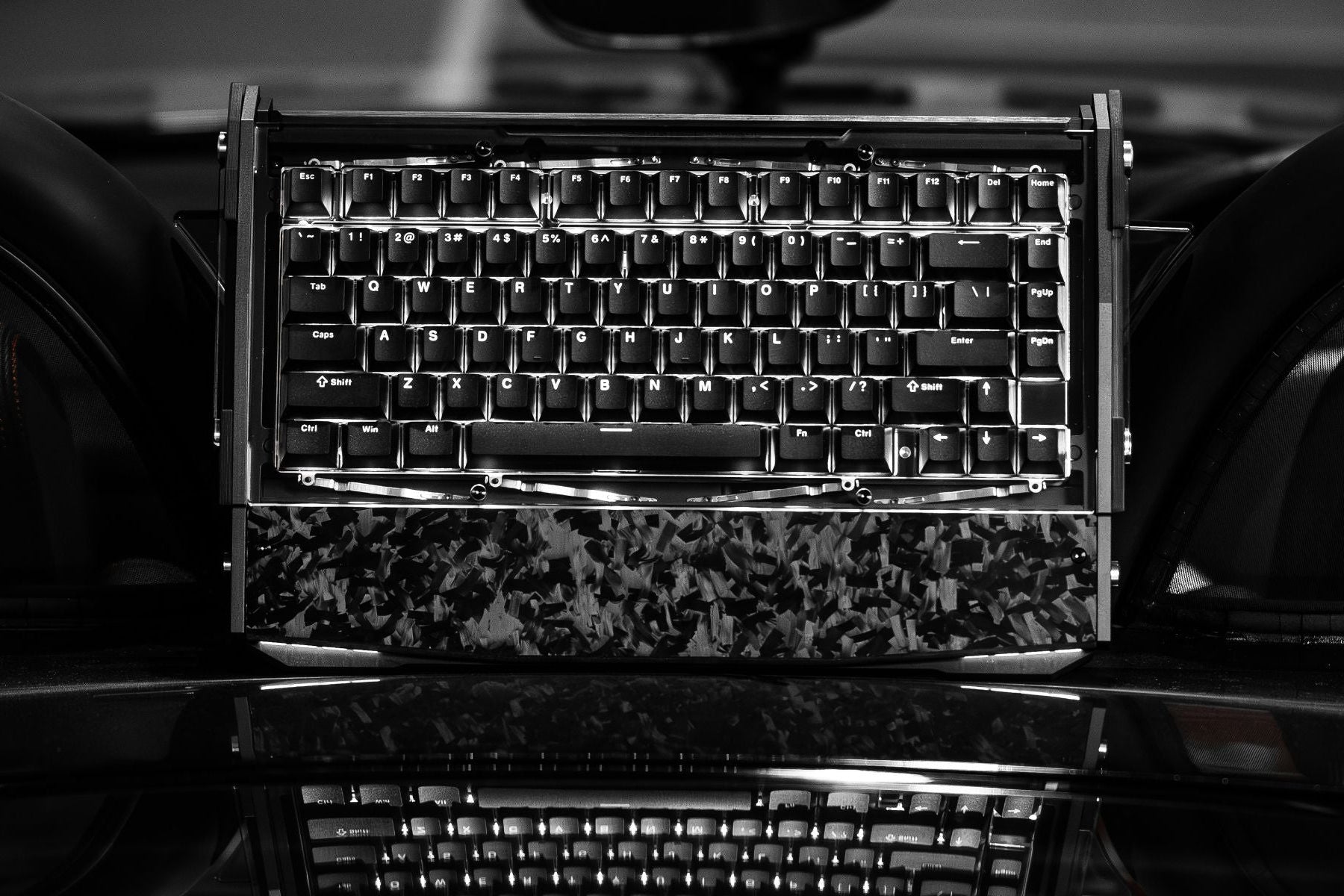

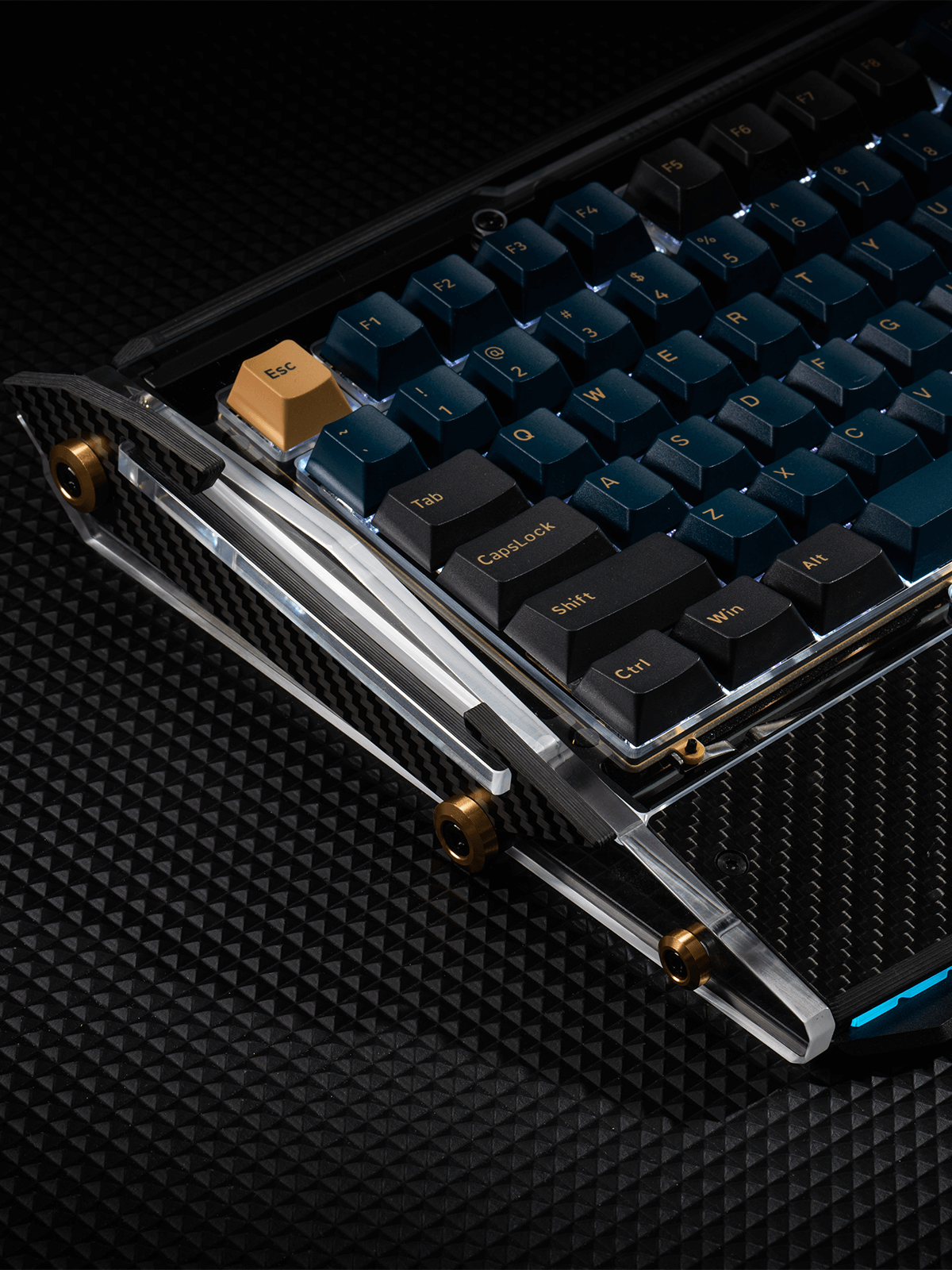

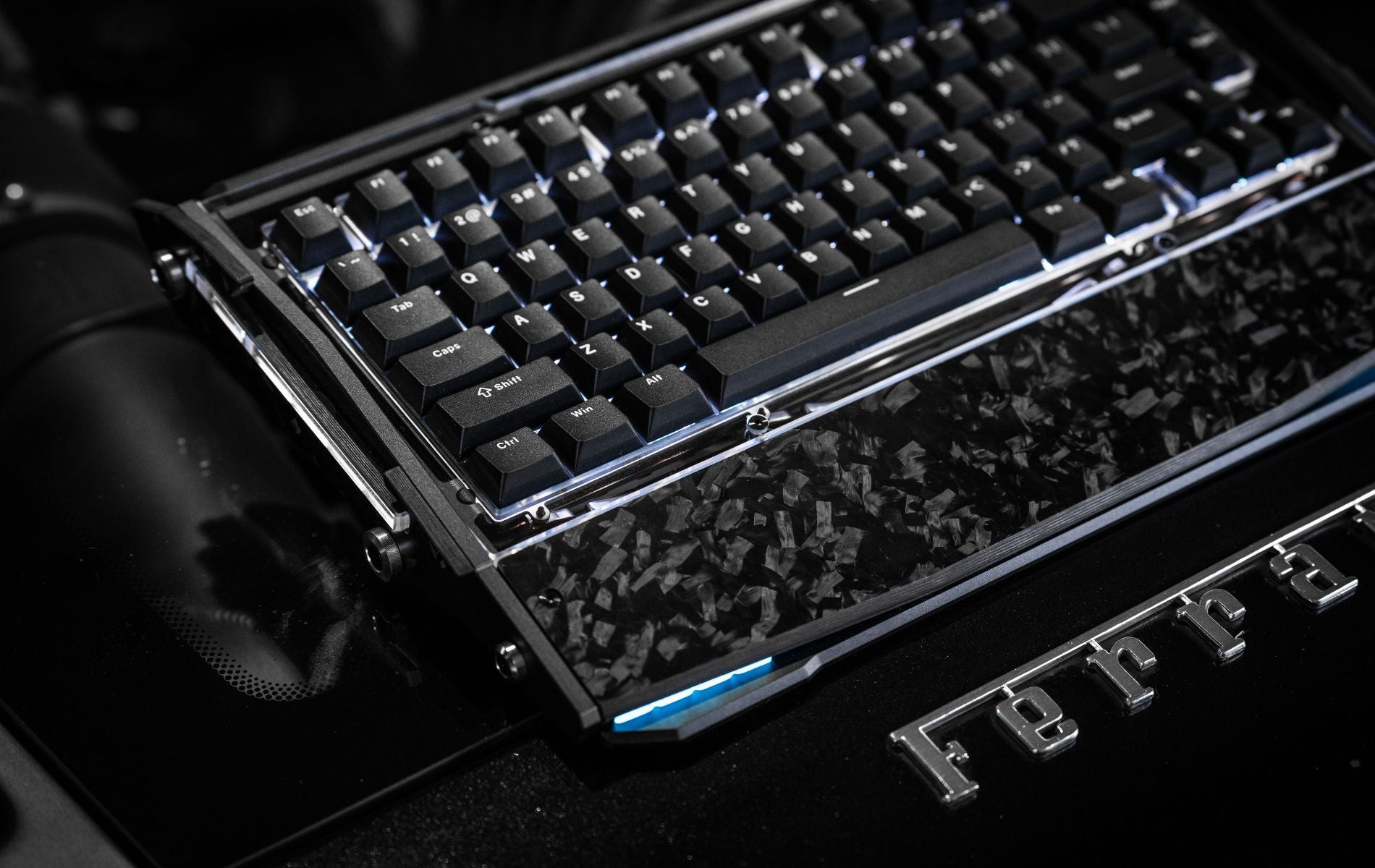

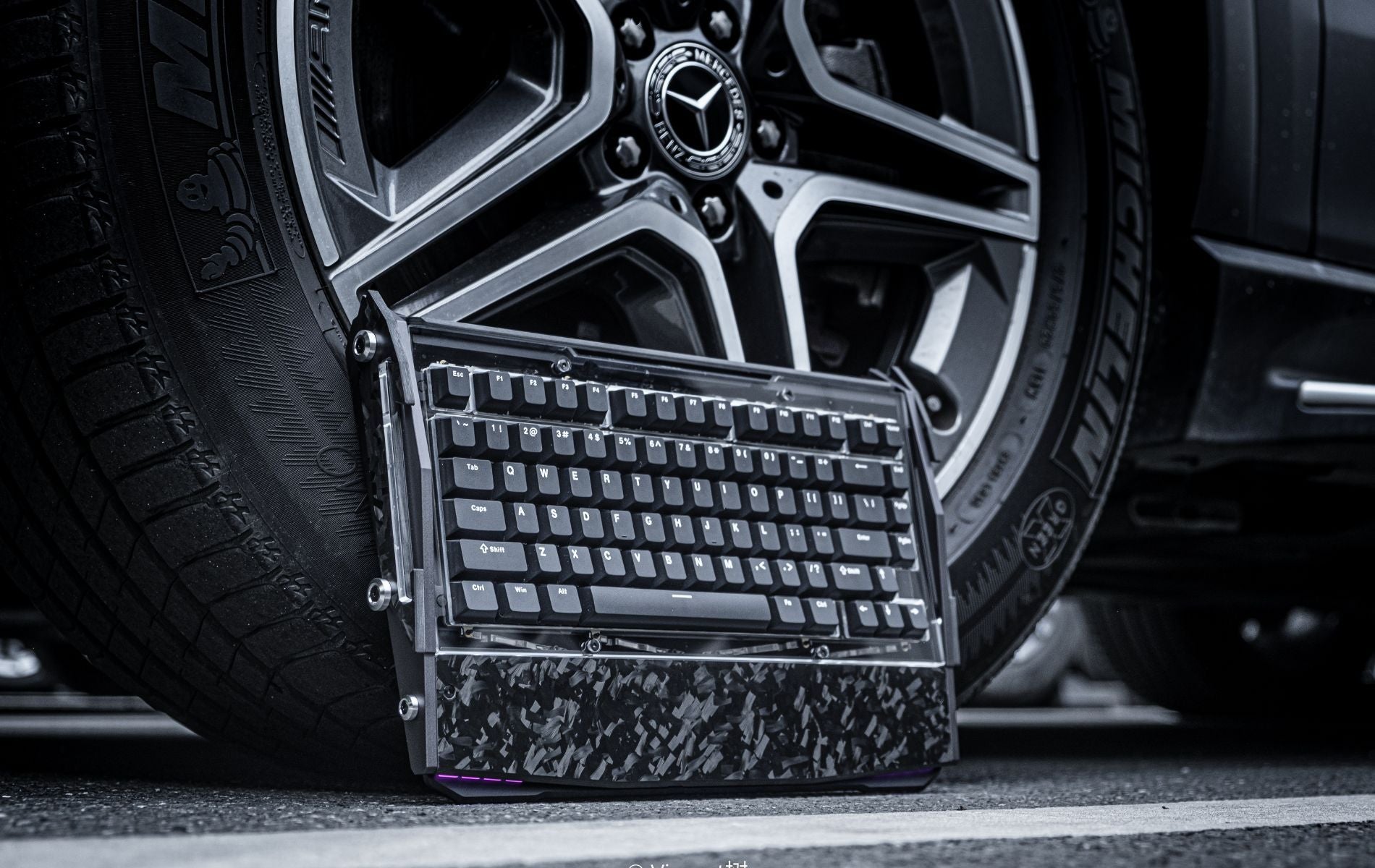

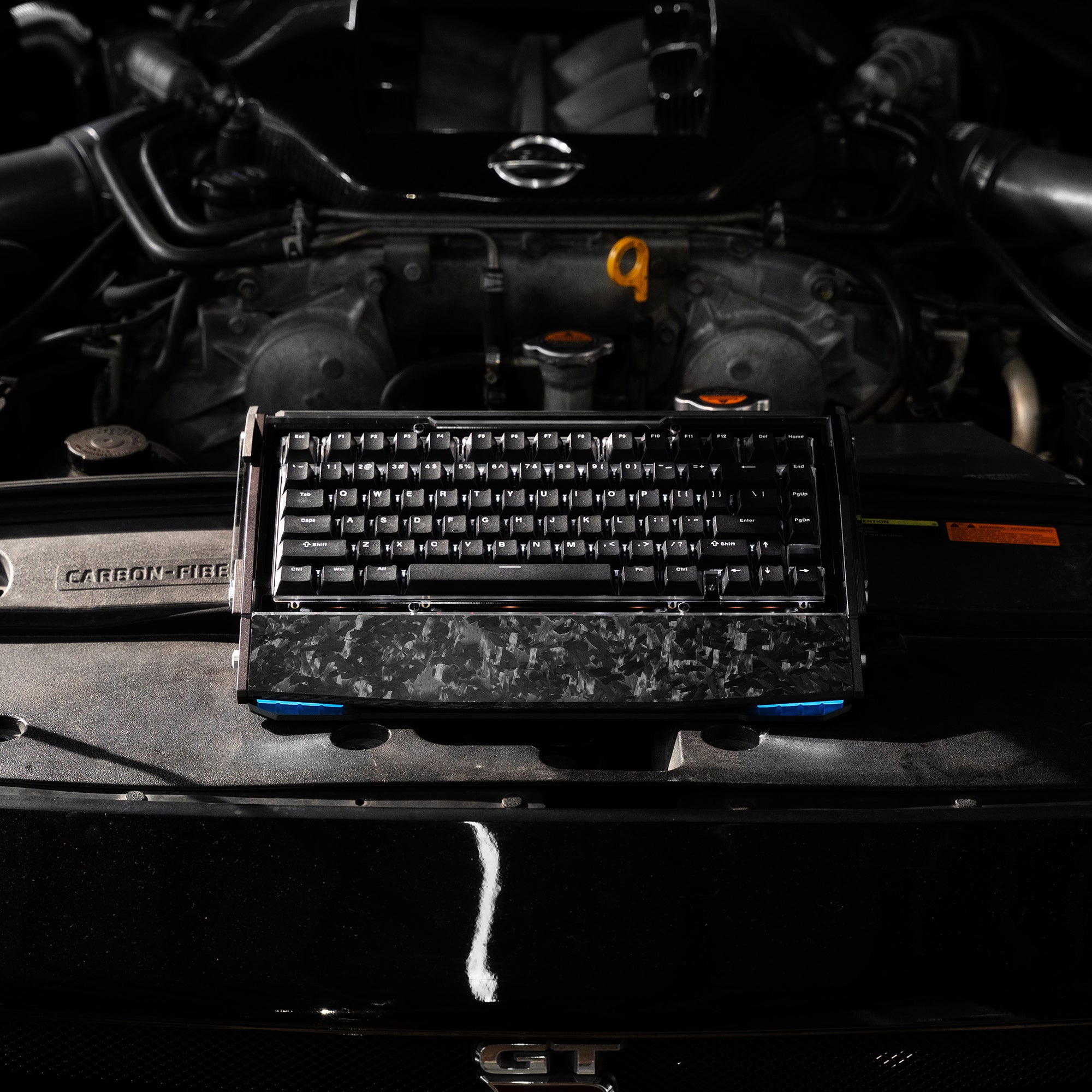

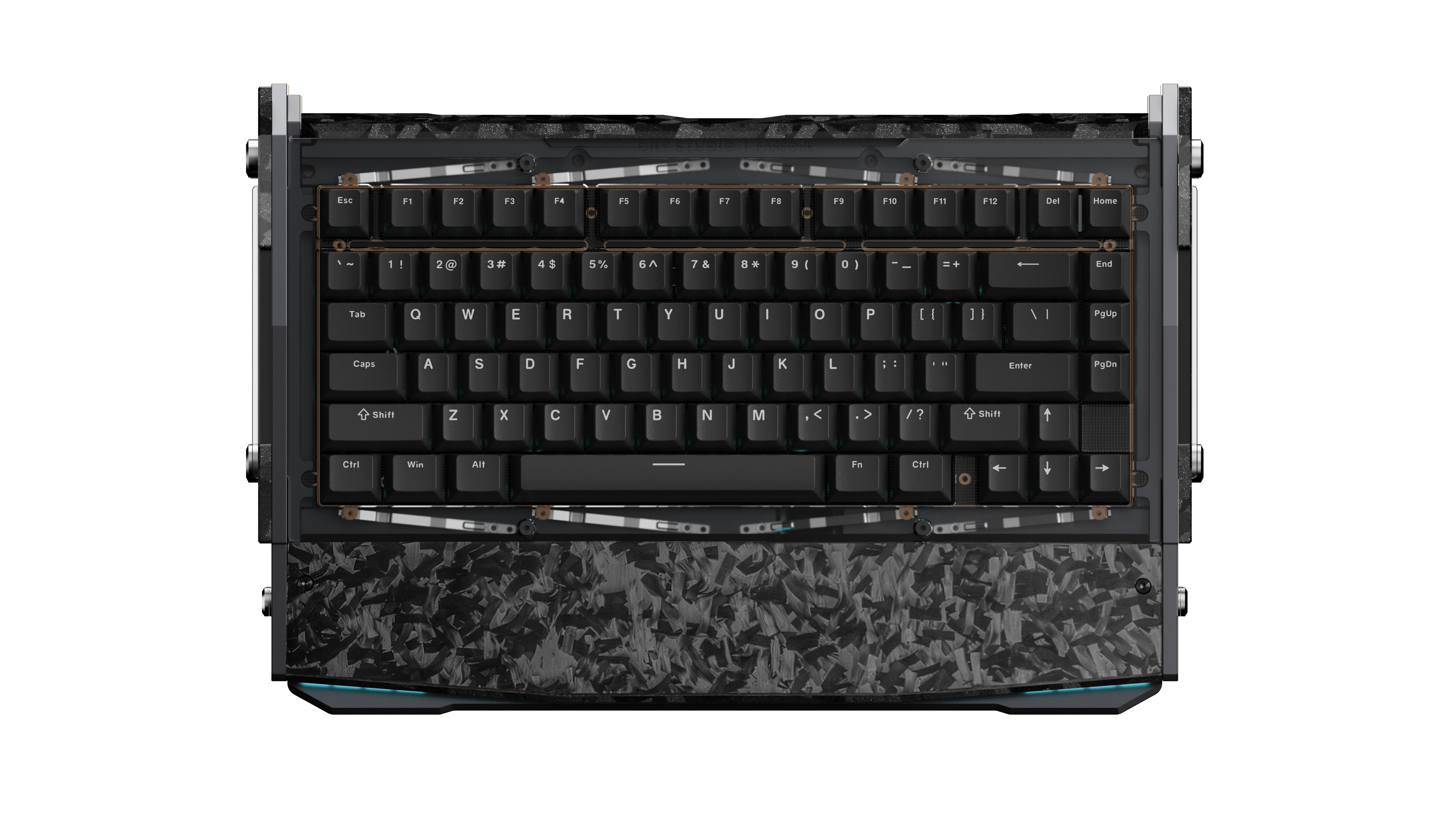

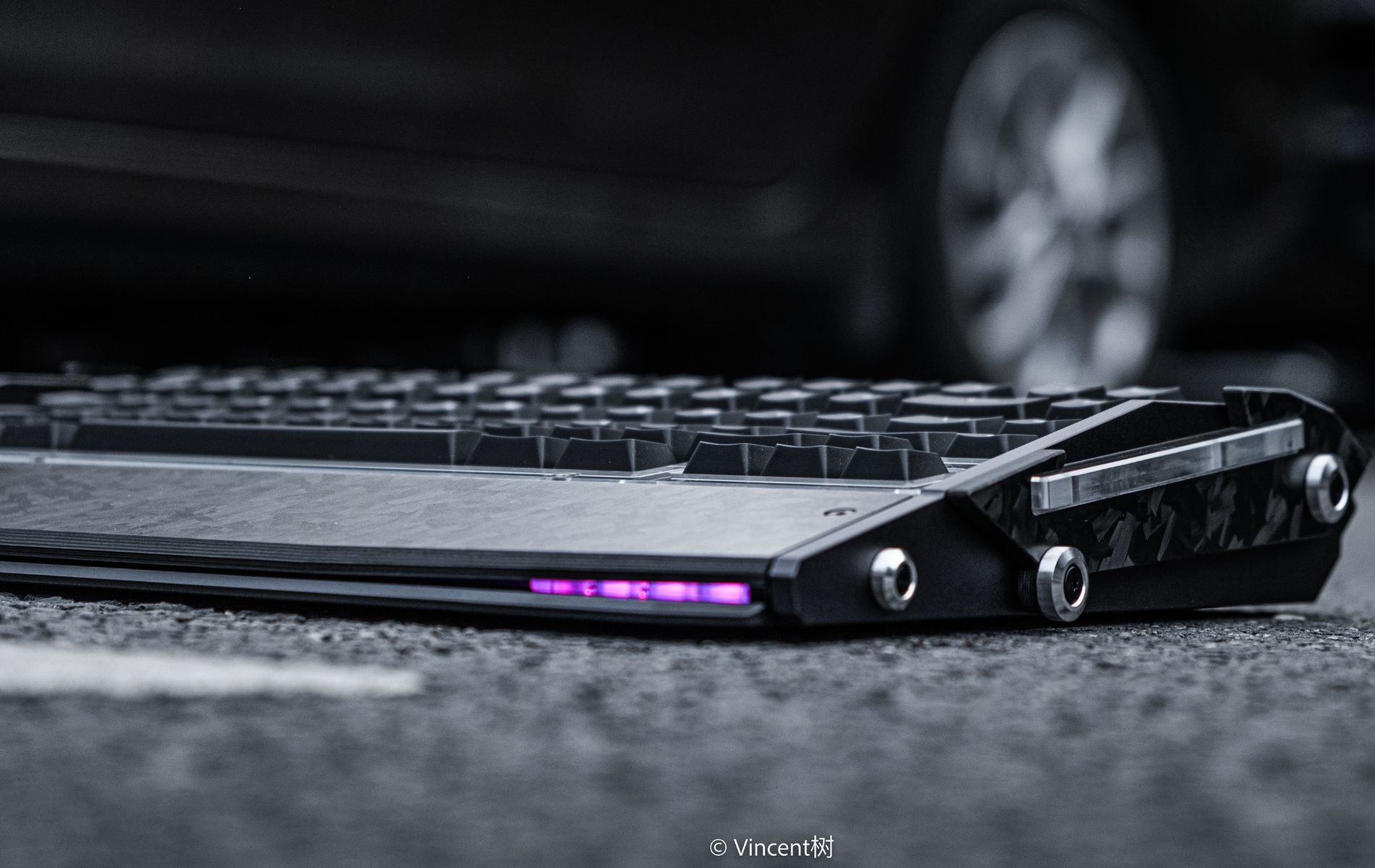

Inspired by the modified all-carbon Lamborghini Aventador - the MANSORY Carbonado - also known as the "Black Diamond". A unique and fierce shape. This is what we aim to bring to your desk.

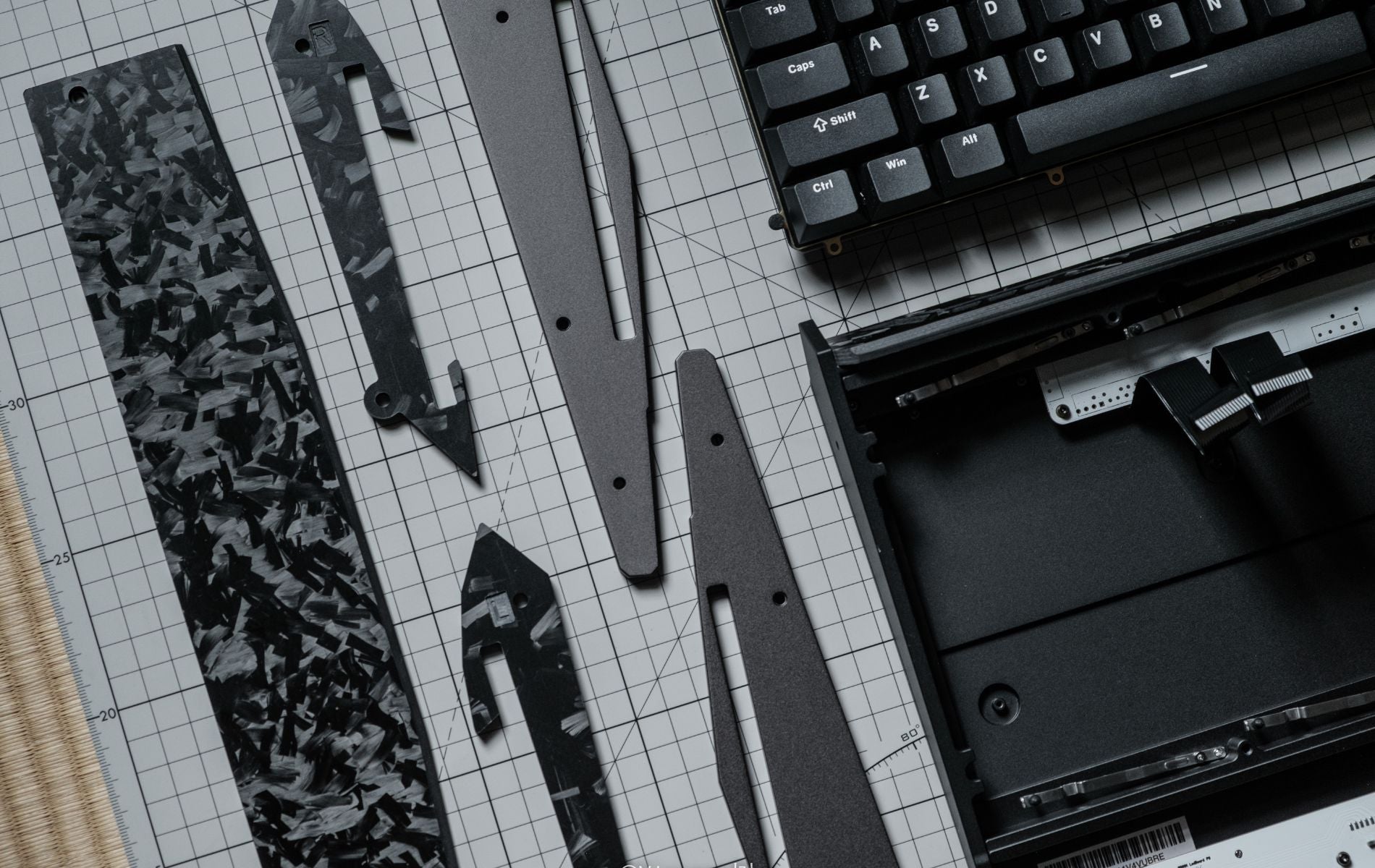

Custom shape. Carbon fiber material. Hand-polished PMMA acrylic with increased hardness exposes the leaf spring internals. And a solid aluminum alloy bottom cover. Just like the rock-hard chassis of a supercar.
Even for a gaming keyboard, we don't want to compromise on typing comfort. Stable yet durable. Black Diamond 75 is the world's first gaming keyboard with leaf spring mount. Enjoy more flex with ultimate comfort.
- Black - 1.0mm actuation travel. Ultra-fast response. High precision, minimum vibration. Factory lubed for maximum consistency.
- Silver - KTT Wine Red switches. Excellent typing feel and sound. Ideal balance between gaming and daily use.

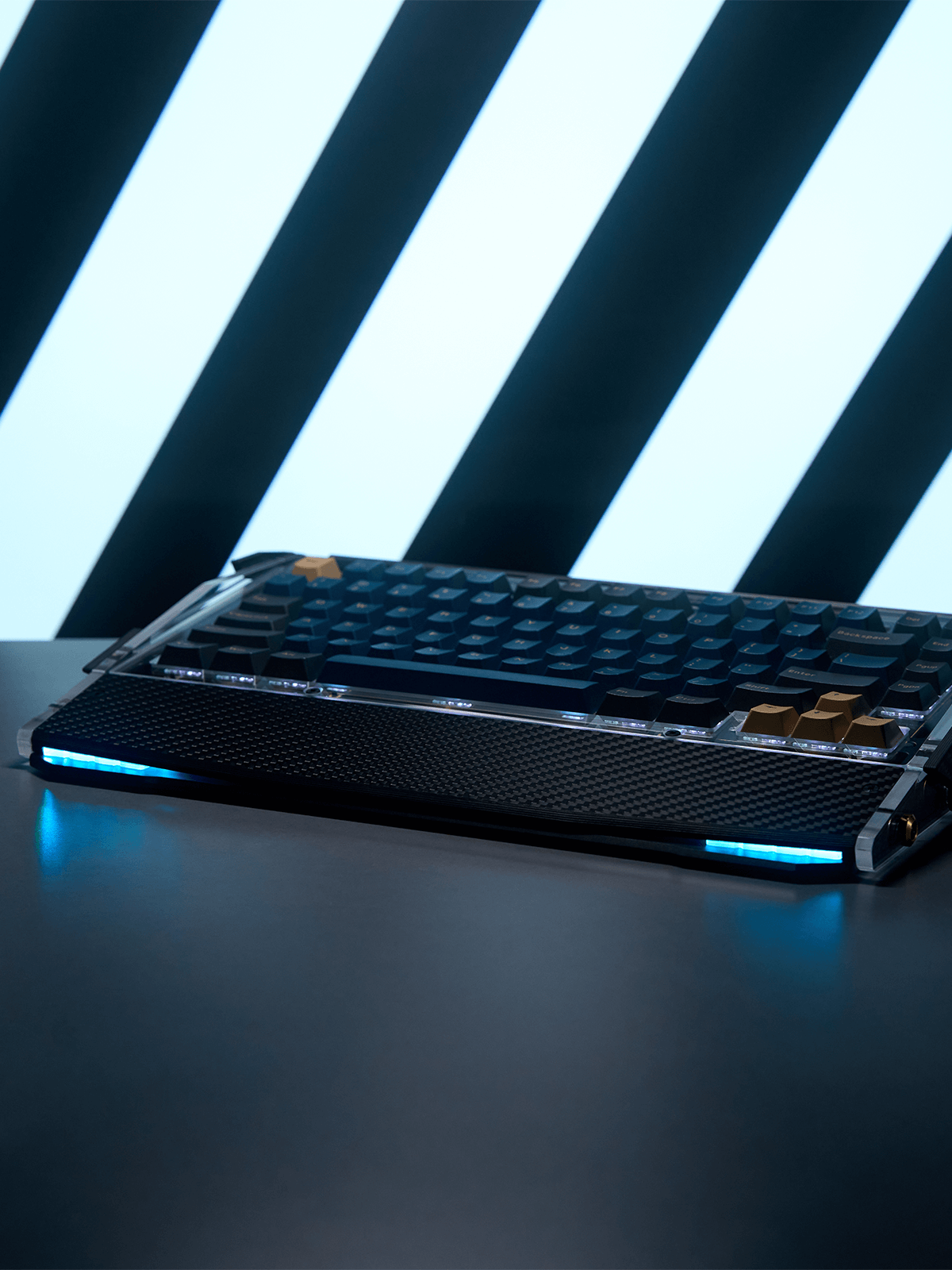

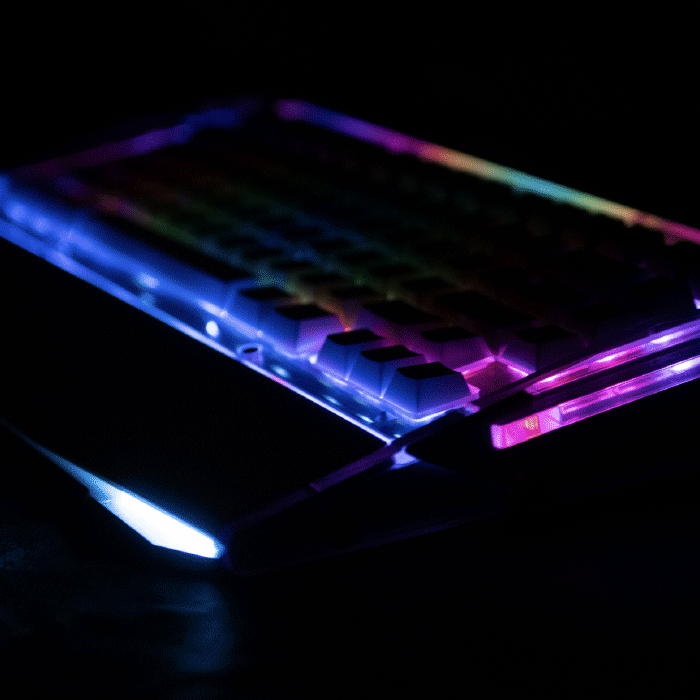

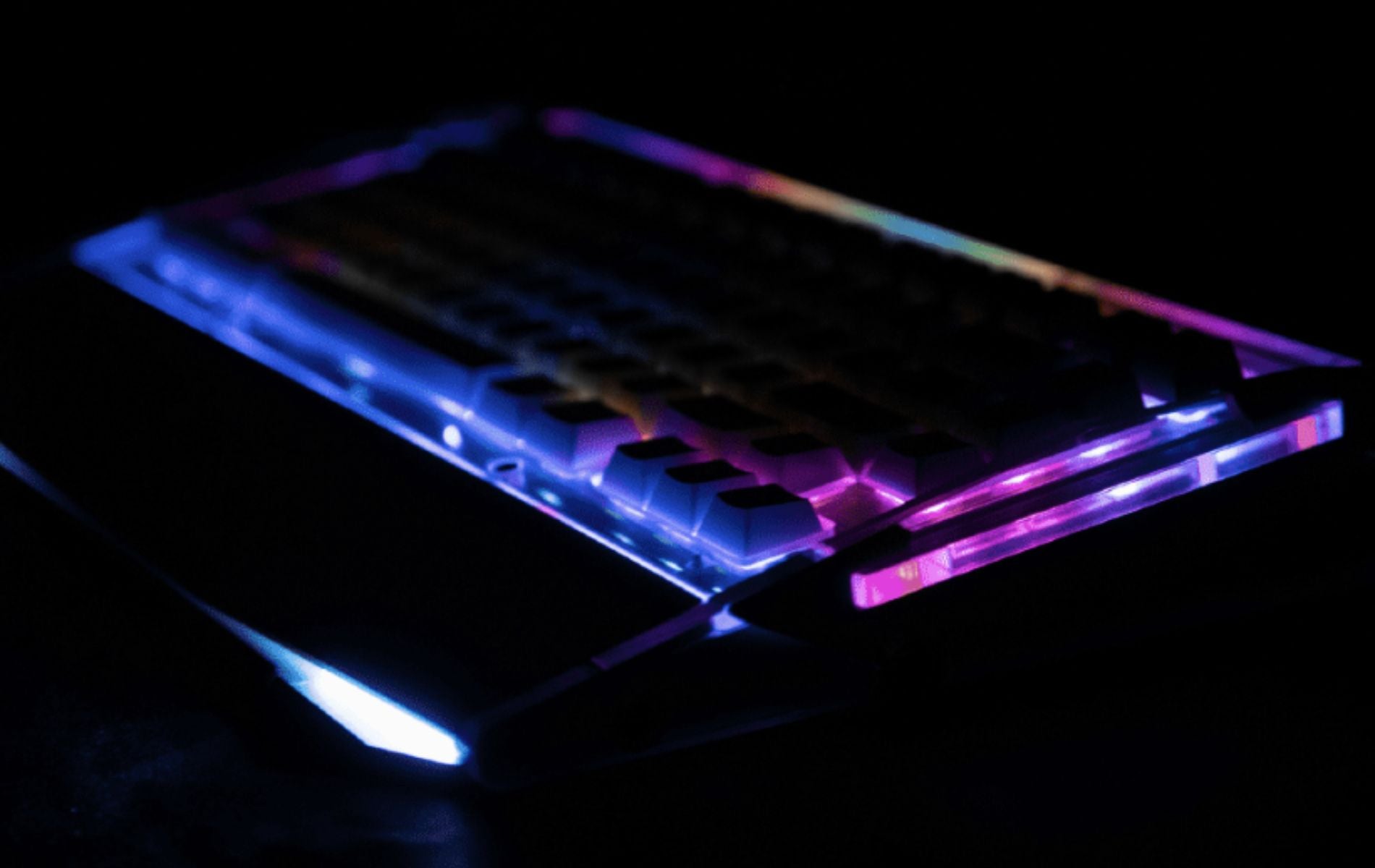

81 in-switch LEDs. 4 programmable RGB LEDs* in each corner. Light up the headlights of your Lamborghini on your desk. Powered by Angry Miao.
Front RGB Lighting available only in Advance version.
2.4G, Bluetooth 5.1 and wired connection support. 2.4GHz private protocol from Angry Miao. An end-to-end wireless latency of less than 2ms*.
*Tested in AM Lab with LED lighting disabled.

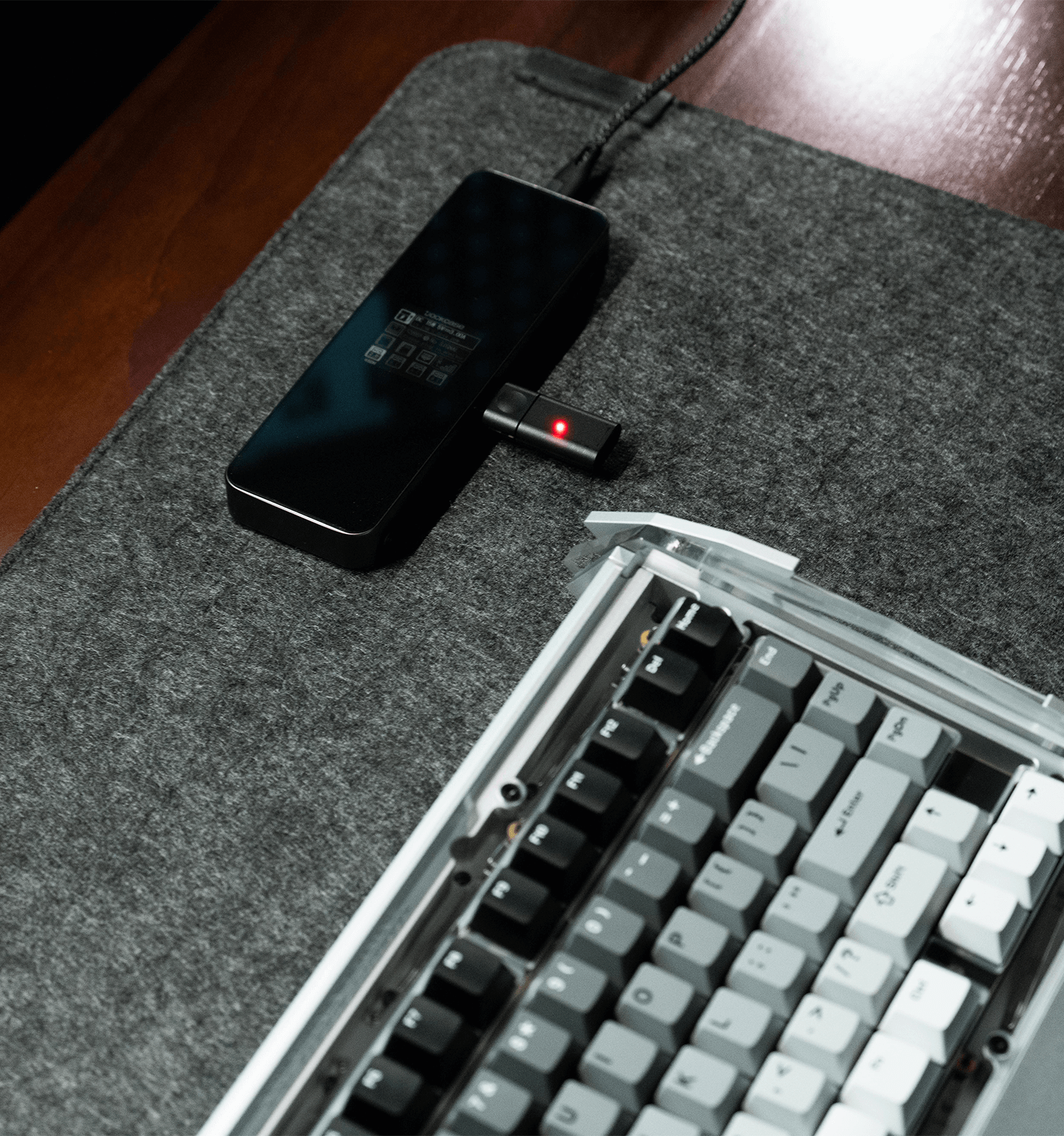

2000Hz scan rate and a 1000Hz polling rate under 2.4G. No matter wired or wireless. Exactly what a professional gamer needs.

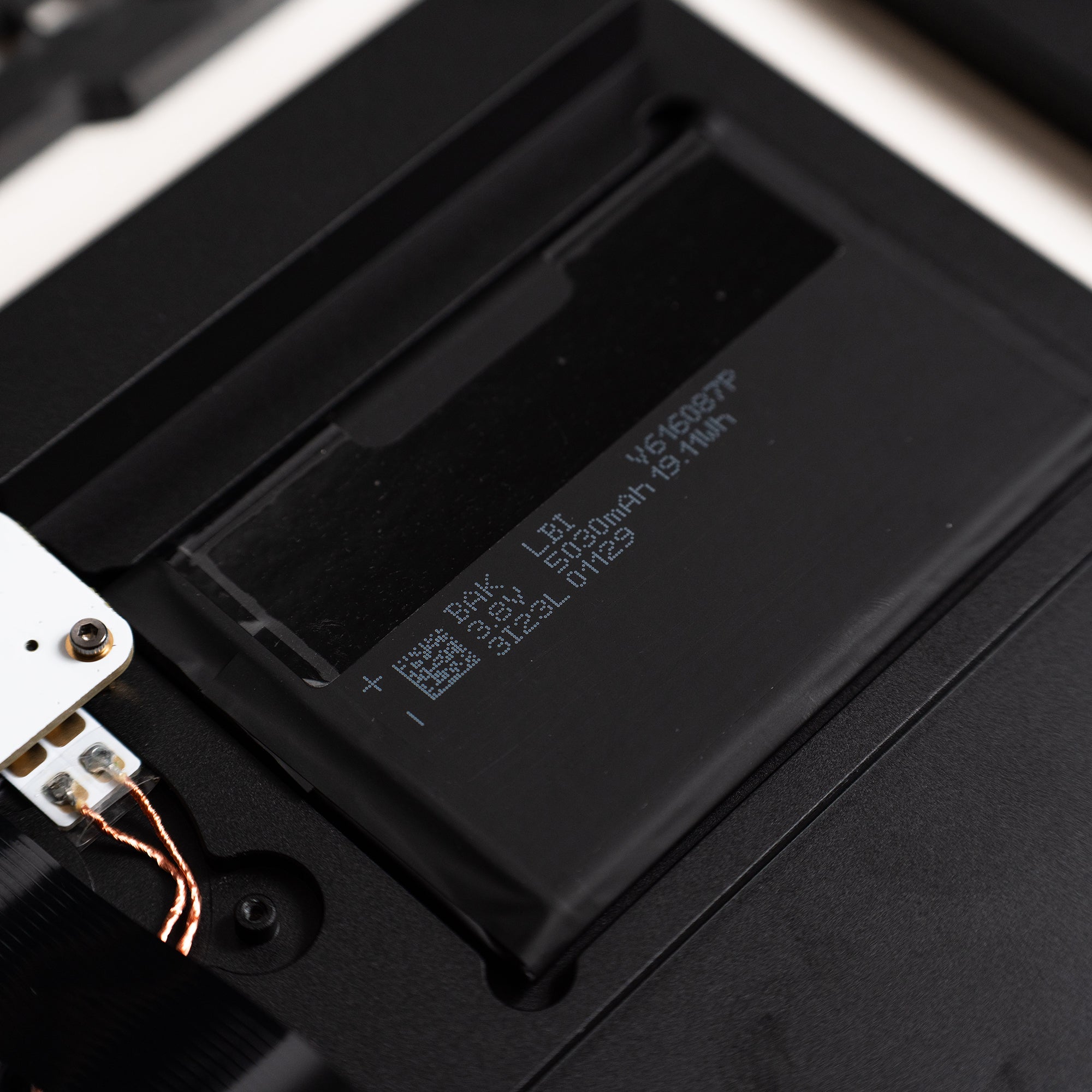

5000mAh capacity. 75 days battery life* in 2.4G mode.
*With LEDs disabled, 8 hours of daily usage time and 16 hours of daily standby time.

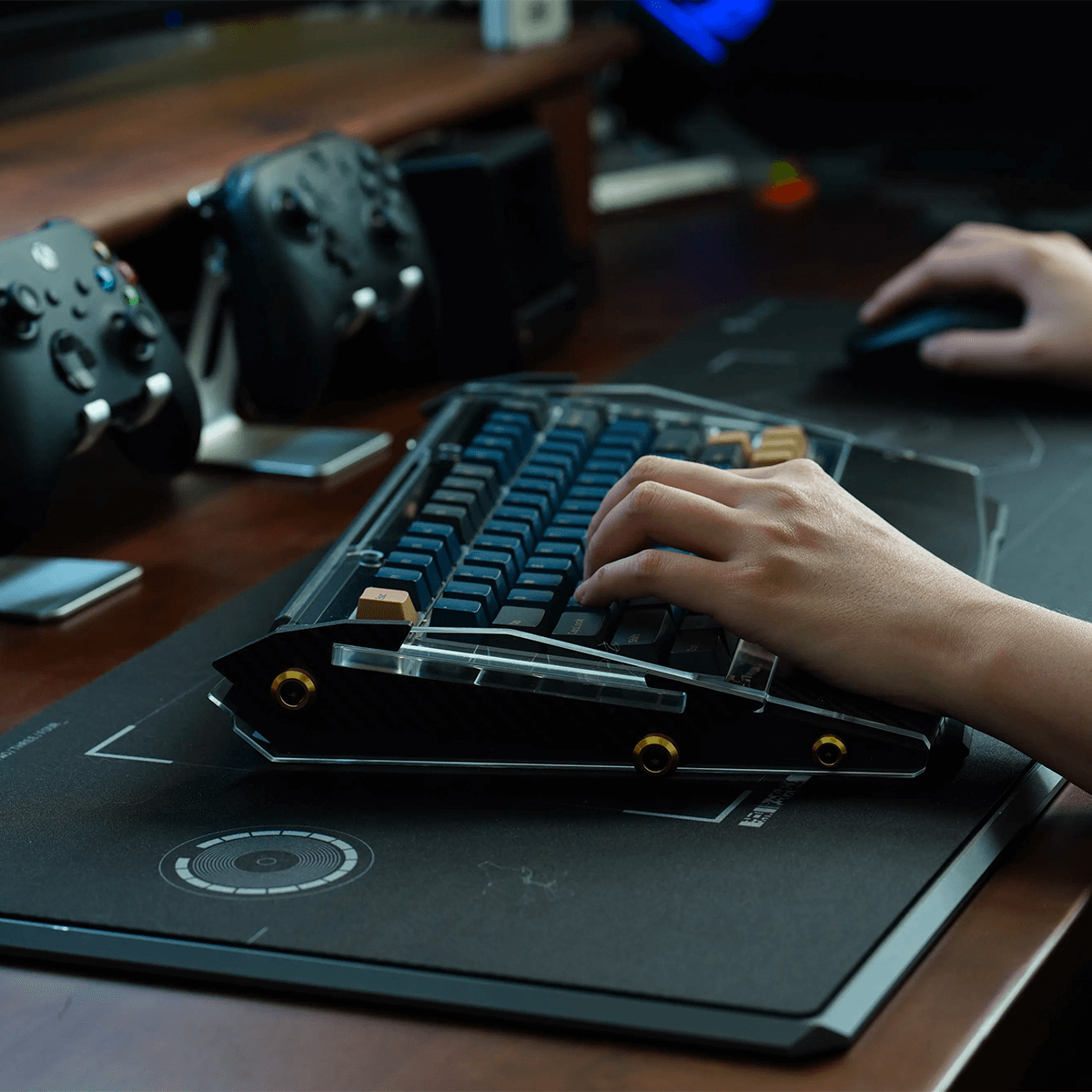

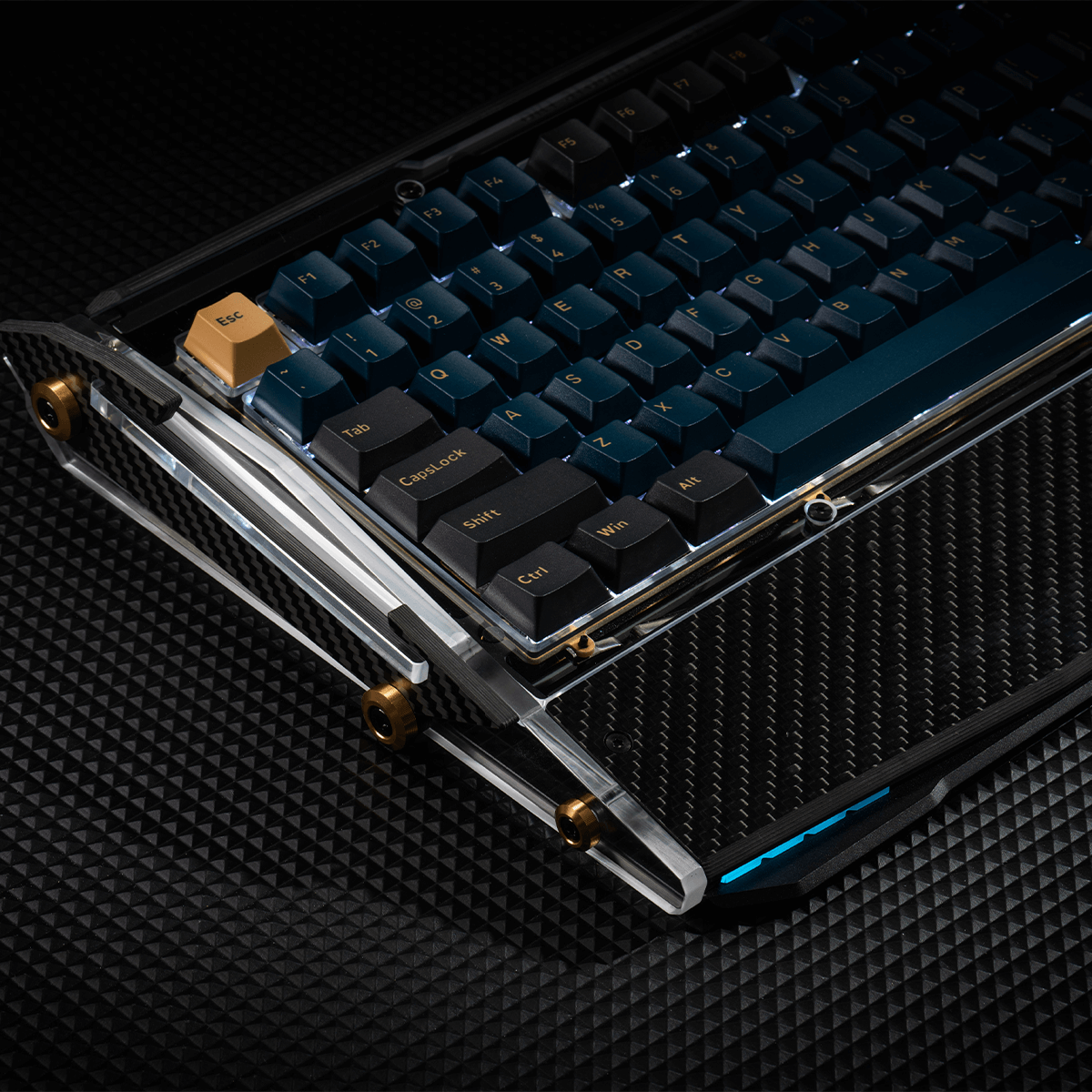

Inspired by the supercar spoiler aerodynamics. Wrist rest built-in for maximum typing comfort. No worrying about front height.

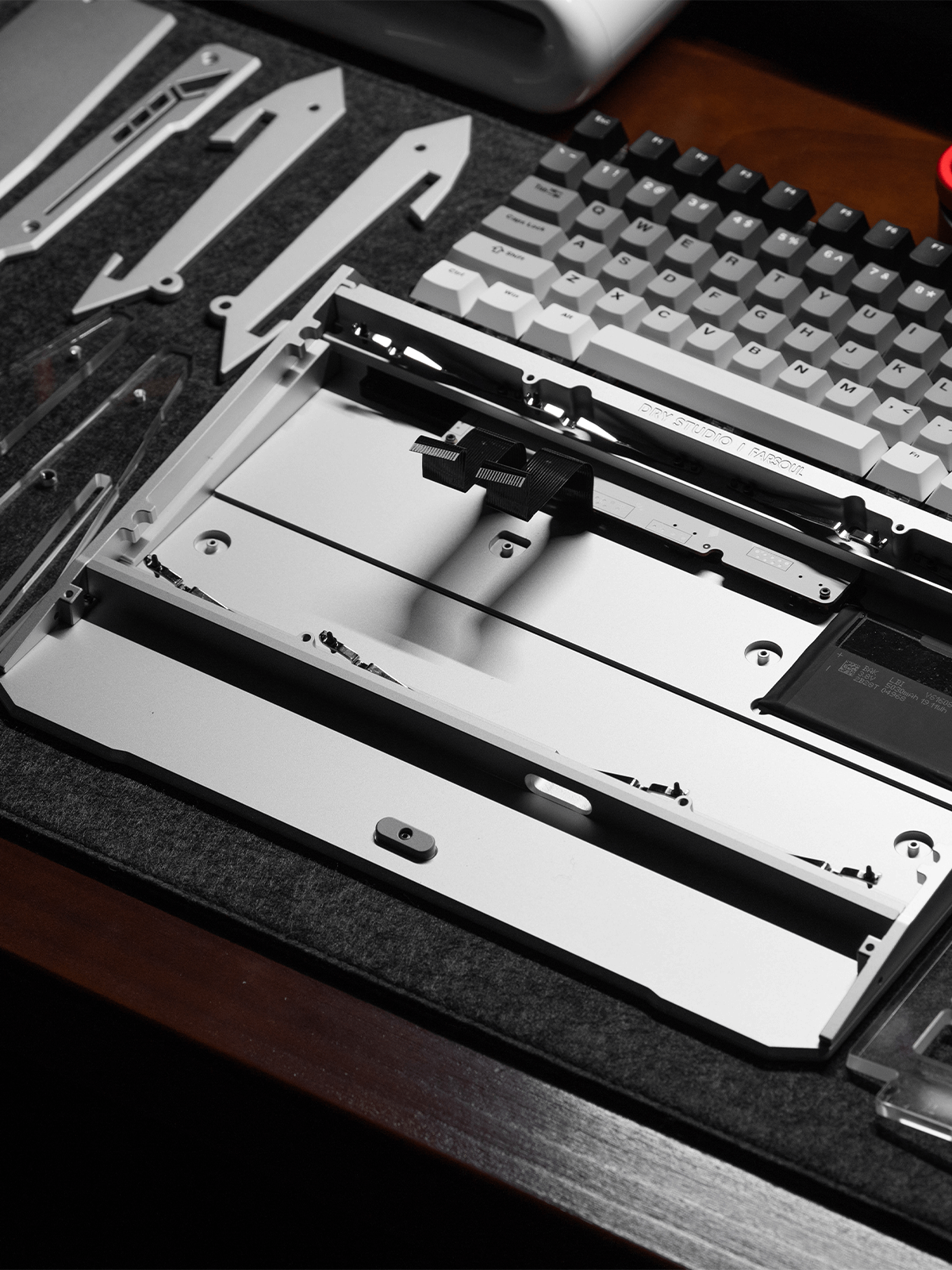

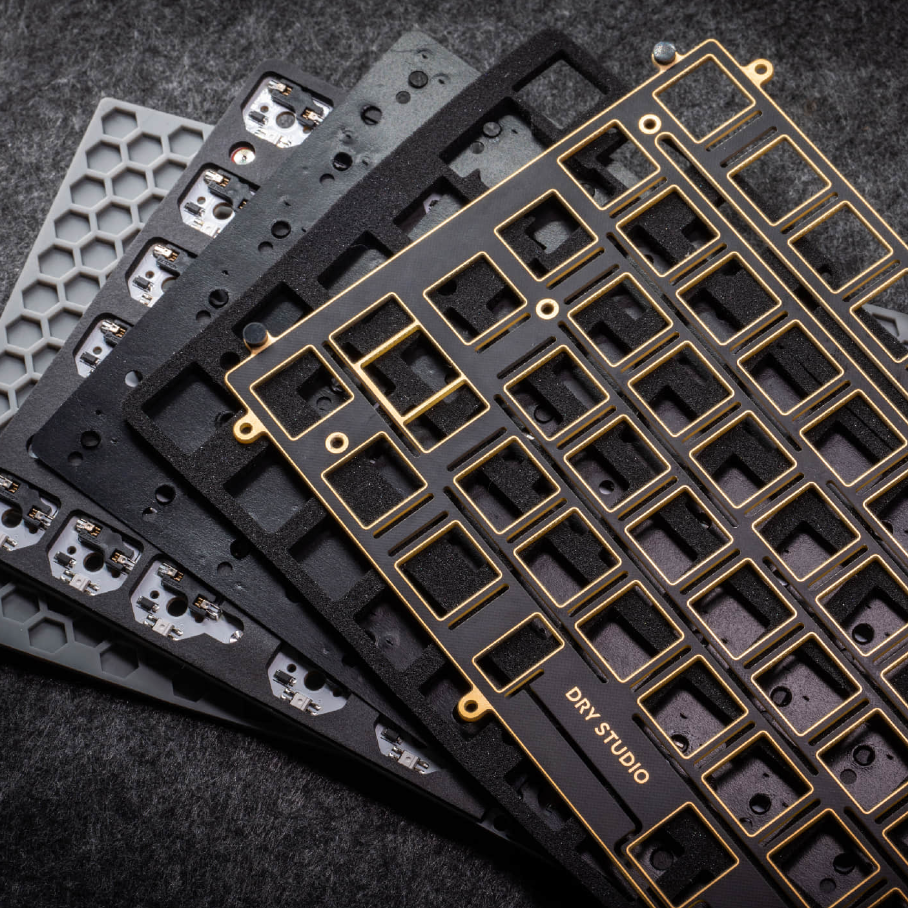

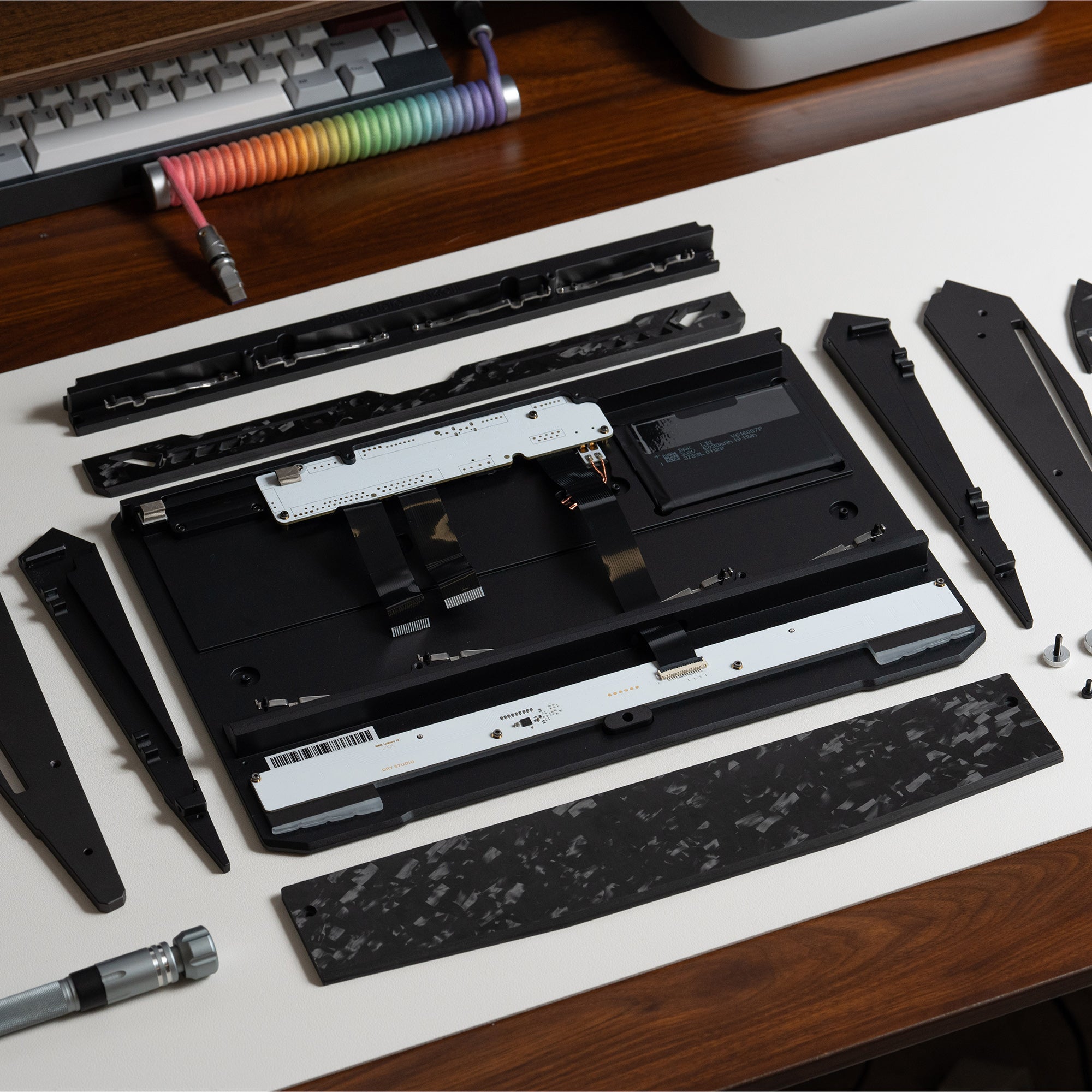

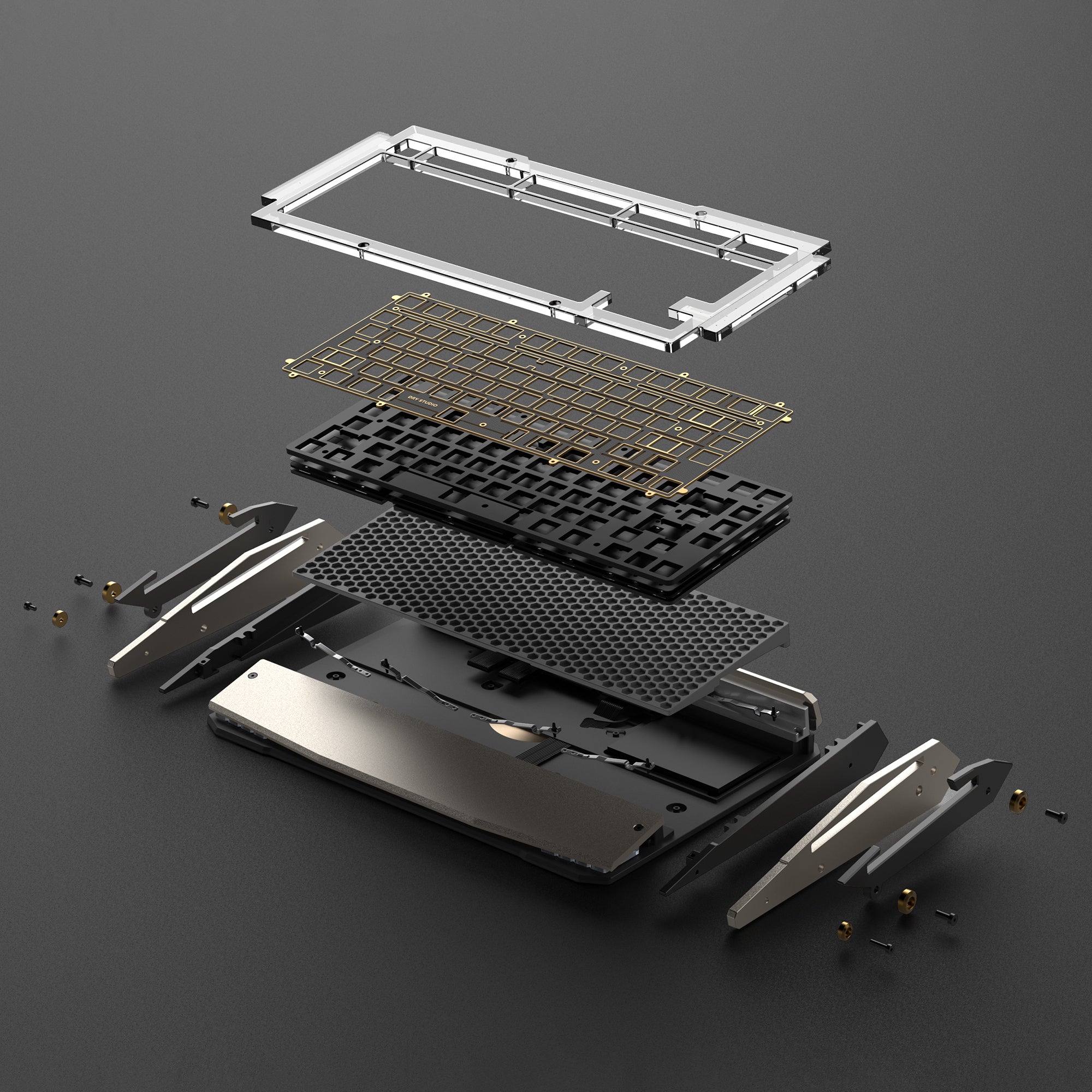

1.6mm hotswap PCB, FR4 plate, IXPE switch pads, Poron foam and a thickened honeycomb silicone pad. Black Diamond 75 delivers an outstanding typing experience.

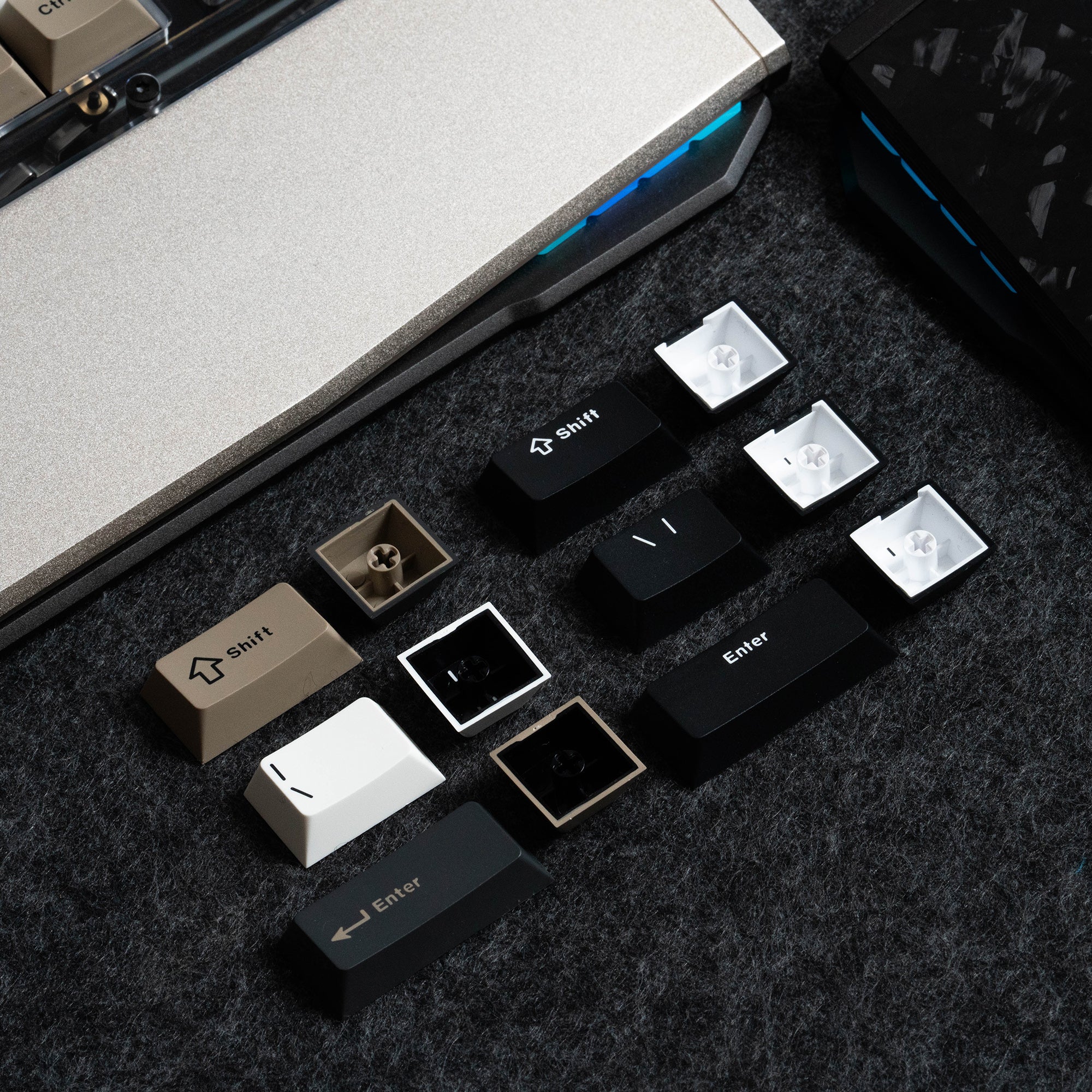

Double shot PBT keycaps included with both colorways. Comfortable to the touch.
* Advance ONLY

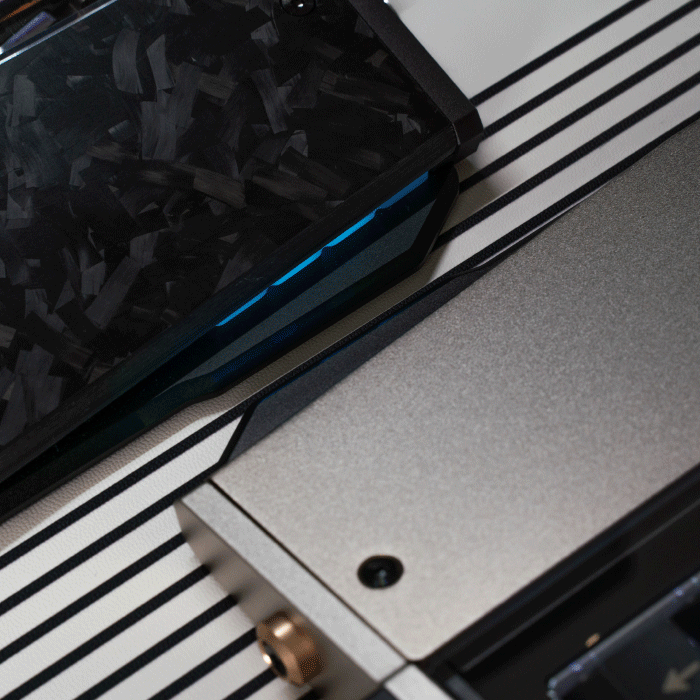

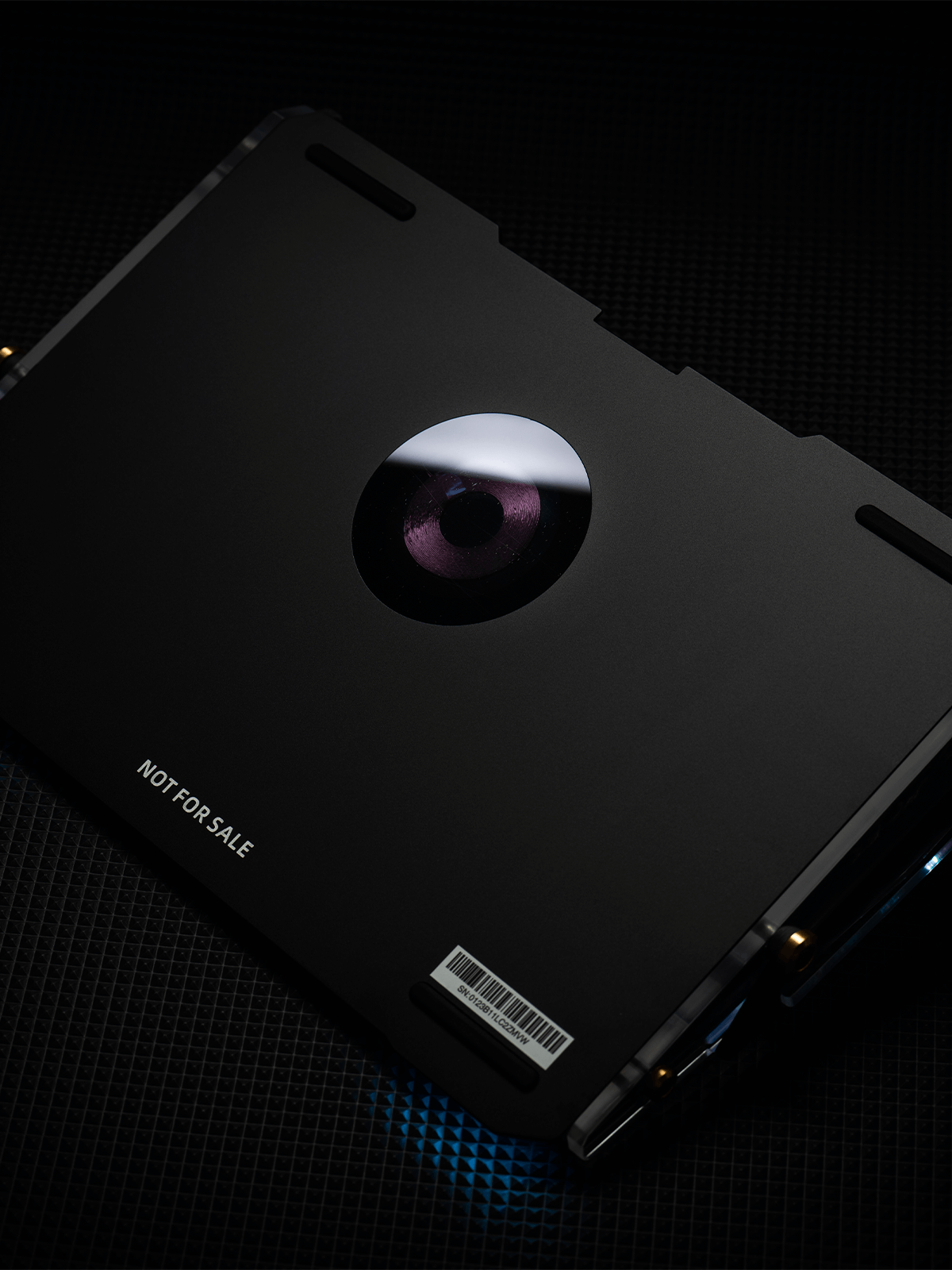

Wireless charging* support. Powered by Angry Miao. Perfect in combination with Angry Miao's CYBERMAT.
Inspired by the modified all-carbon Lamborghini Aventador - the MANSORY Carbonado - also known as the "Black Diamond". A unique and fierce shape. This is what we aim to bring to your desk.
Custom shape. Carbon fiber material. Hand-polished PMMA acrylic with increased hardness exposes the leaf spring internals. And a solid aluminum alloy bottom cover. Just like the rock-hard chassis of a supercar.
Even for a gaming keyboard, we don't want to compromise on typing comfort. Stable yet durable. Black Diamond 75 is the world's first gaming keyboard with leaf spring mount. Enjoy more flex with ultimate comfort.
- Black - 1.0mm actuation travel. Ultra-fast response. High precision, minimum vibration. Factory lubed for maximum consistency.

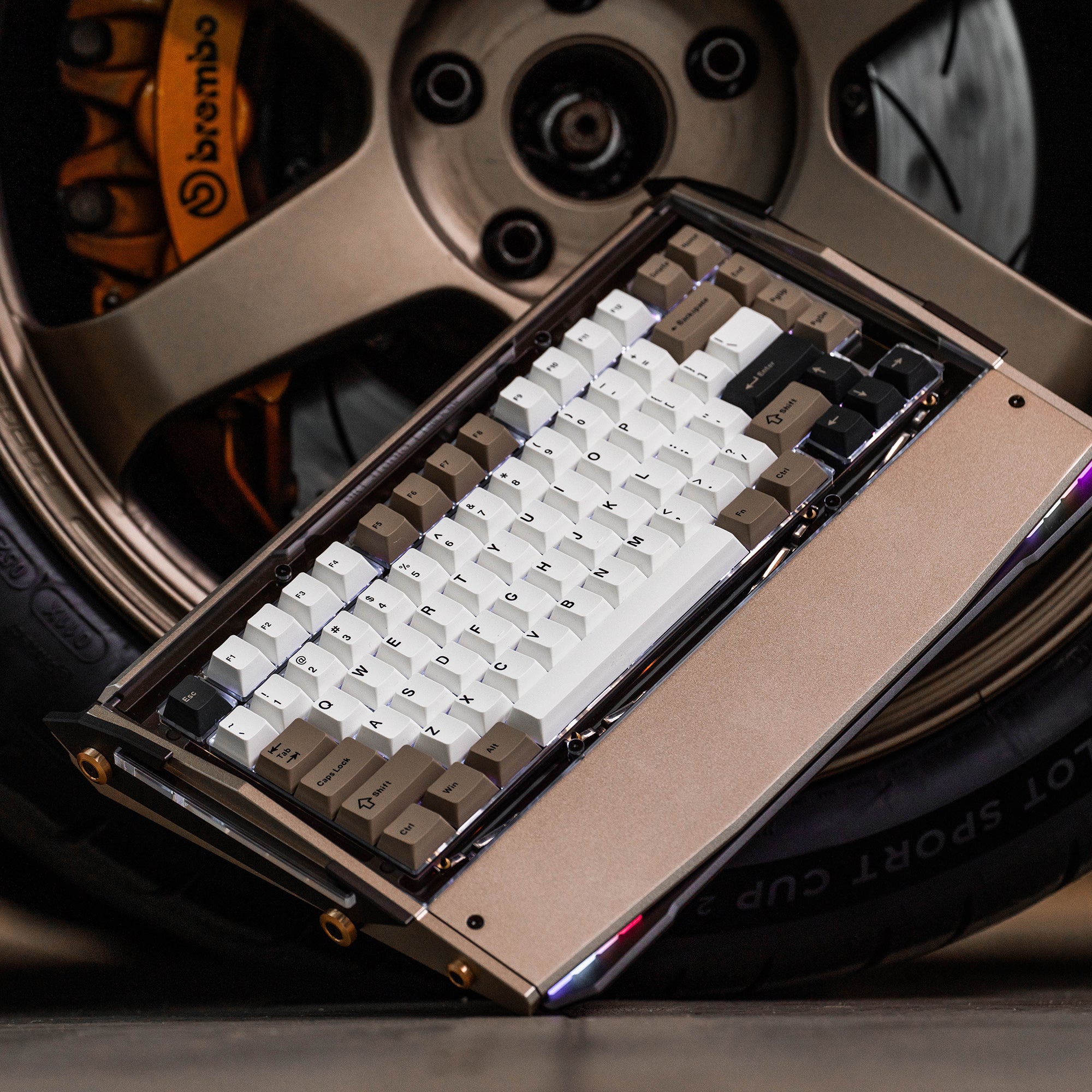

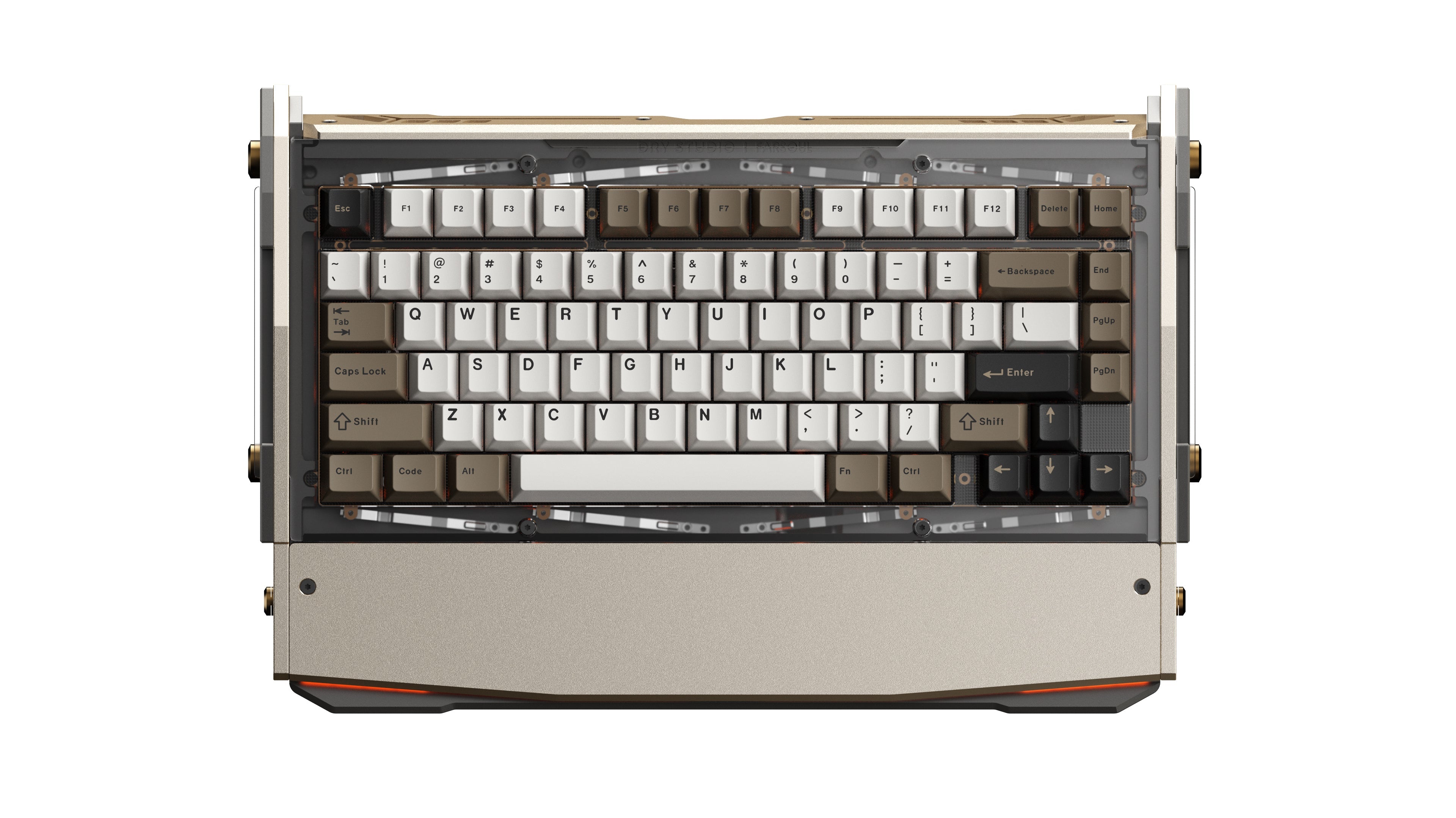

- Silver - KTT Wine Red switches. Excellent typing feel and sound. Ideal balance between gaming and daily use.
81 in-switch LEDs. 4 programmable RGB LEDs* in each corner. Light up the headlights of your Lamborghini on your desk. Powered by Angry Miao.
Front RGB Lighting available only in Advance version.
2.4G, Bluetooth 5.1 and wired connection support. 2.4GHz private protocol from Angry Miao. An end-to-end wireless latency of less than 2ms*.
*Tested in AM Lab with LED lighting disabled.
2000Hz scan rate and a 1000Hz polling rate under 2.4G. No matter wired or wireless. Exactly what a professional gamer needs.
5000mAh capacity. 75 days battery life* in 2.4G mode.
*With LEDs disabled, 8 hours of daily usage time and 16 hours of daily standby time.
Inspired by the supercar spoiler aerodynamics. Wrist rest built-in for maximum typing comfort. No worrying about front height.
1.6mm hotswap PCB, FR4 plate, IXPE switch pads, Poron foam and a thickened honeycomb silicone pad. Black Diamond 75 delivers an outstanding typing experience.
Double shot PBT keycaps included with both colorways. Comfortable to the touch.
* Advance ONLY
Wireless charging* support. Powered by Angry Miao. Perfect in combination with Angry Miao's CYBERMAT.
The Black Diamond 75's build quality and ornate construction feel really impressive for this kind of money.
lt's unique, beautifully designed, has a sound, and feels usually reserved for group buy keyboards.
At this price, there really isn't a board on the market that has the same design factor and build quality.
Cheese Turbulence - Keeb YouTuber
The Black Diamond 75 from Dry Studio is much more than just a gaming keyboard.
The way this is put together, the machining, and the resulting typing experience was a big surprise.
View More ReviewsSir Cilantro
It truly feels tailor made to fit gaming and keyboard enthusiasts alike.
Everything from the beautiful design to the unique rapid gaming switches had me all in on this board.
Gaming Tech
I was not expecting the sound to be this good.
I gamed a lot with this board, mainly fps titles where movement is super crucial, both wired and wireless mode 0 issues I had, it’s been a very pleasant experience.
jeff.chow93

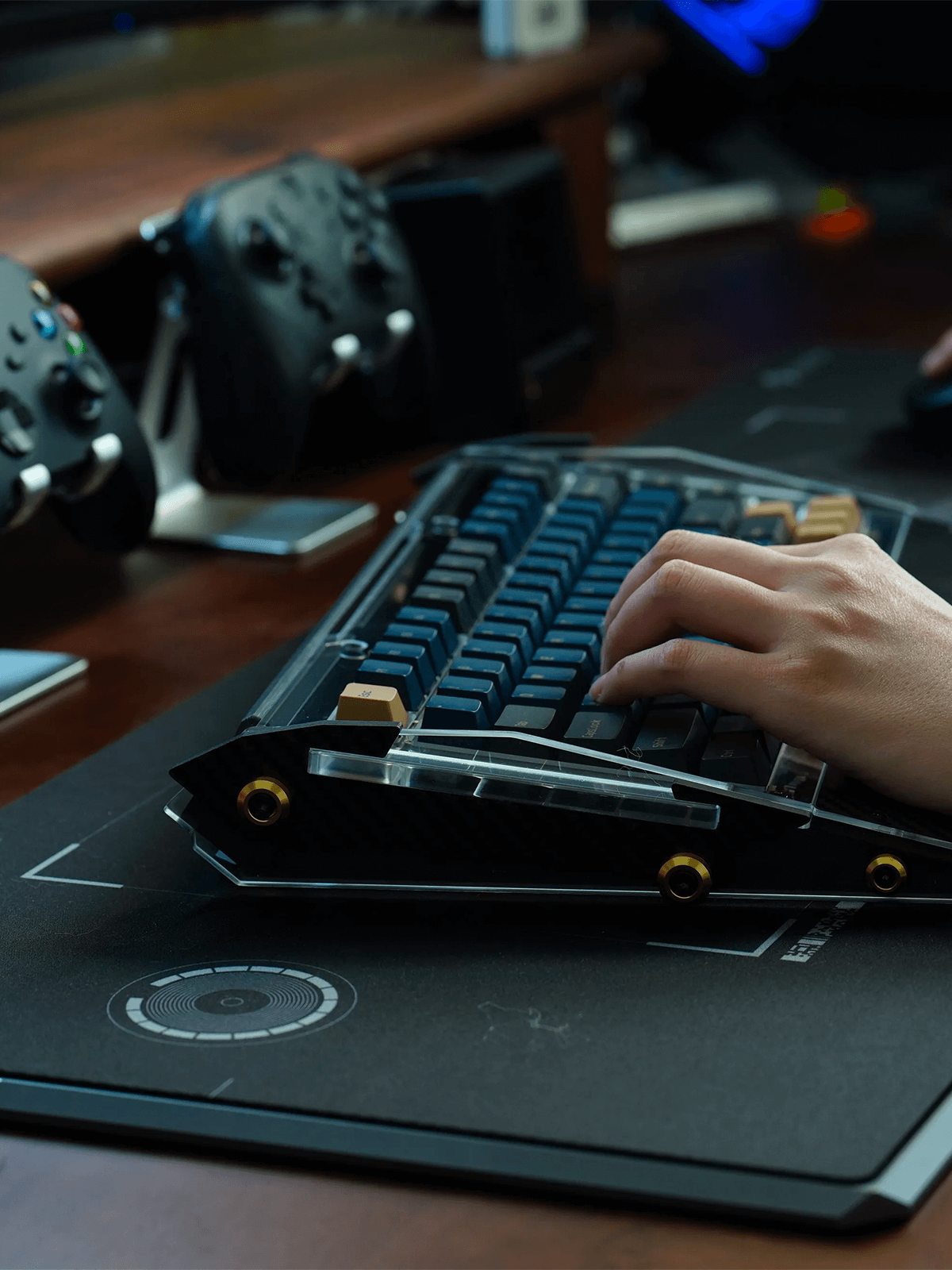

The low latency was something I have been in search for, especially for FPS gaming.
Using the dongle really is faster than on wired. Extremely noticeable when moving in FPS games, especially in Valorant.
Product Specifications
21 x 13.5 x 5 inches
Carbon 2.8kg (±0.1), Mithril 3.0kg (±0.1)
7°
Leaf spring mount
No additional drivers required, supports N-key rollover
Configurable on Windows/macOS via AM Master
Hot-swappable
Wired, Bluetooth 5.1, wireless 2.4G
Power indicator, connection status indicator and Caps Lock indicator are located on the mainboard
USB 2.0, Type-C, supports USB-C to USB-C
Lithium polymer 5000mAh
Wireless charging 5W, starts charging automatically when battery power drops below 85% and stops at 100%
Advance 3W, Standard 2.5W

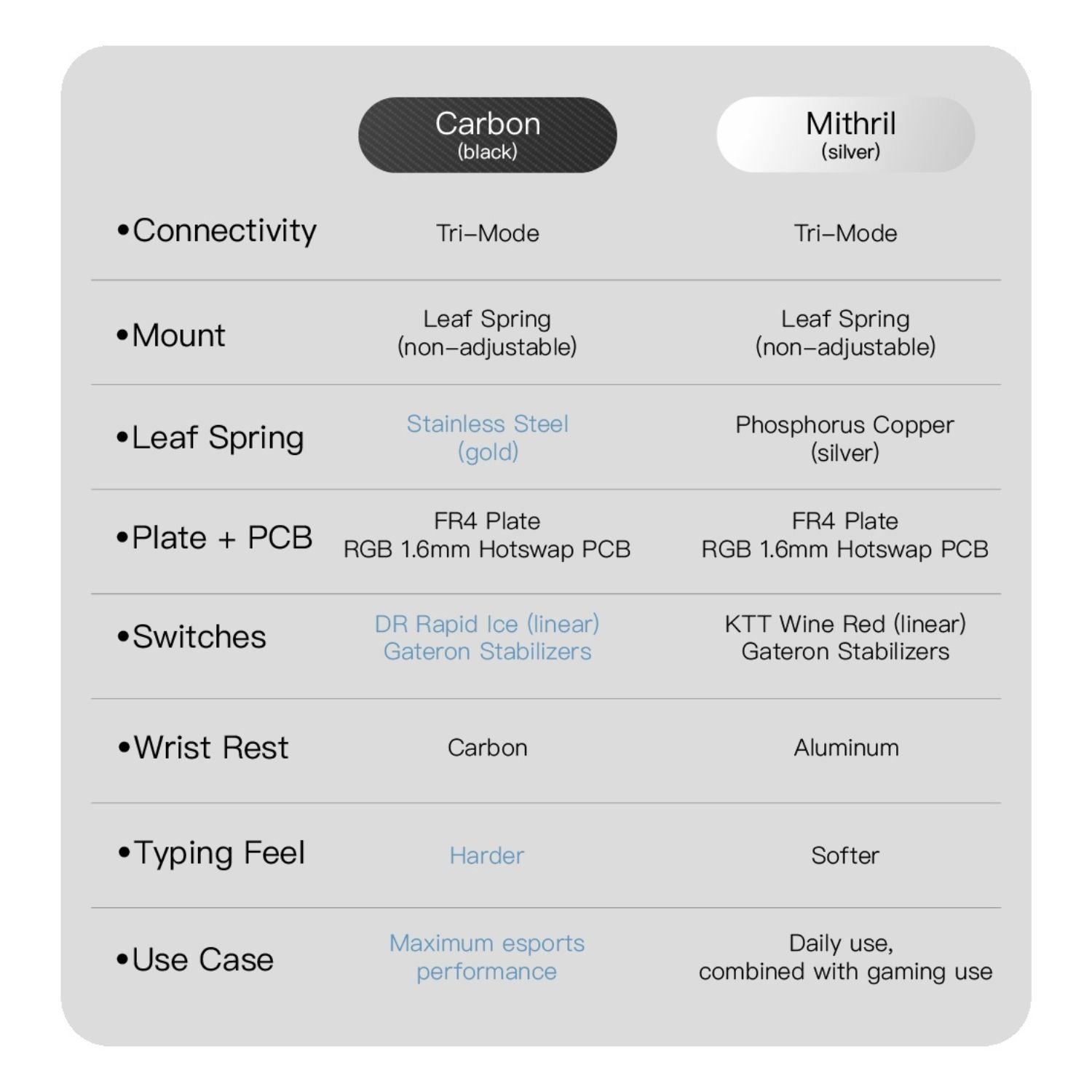

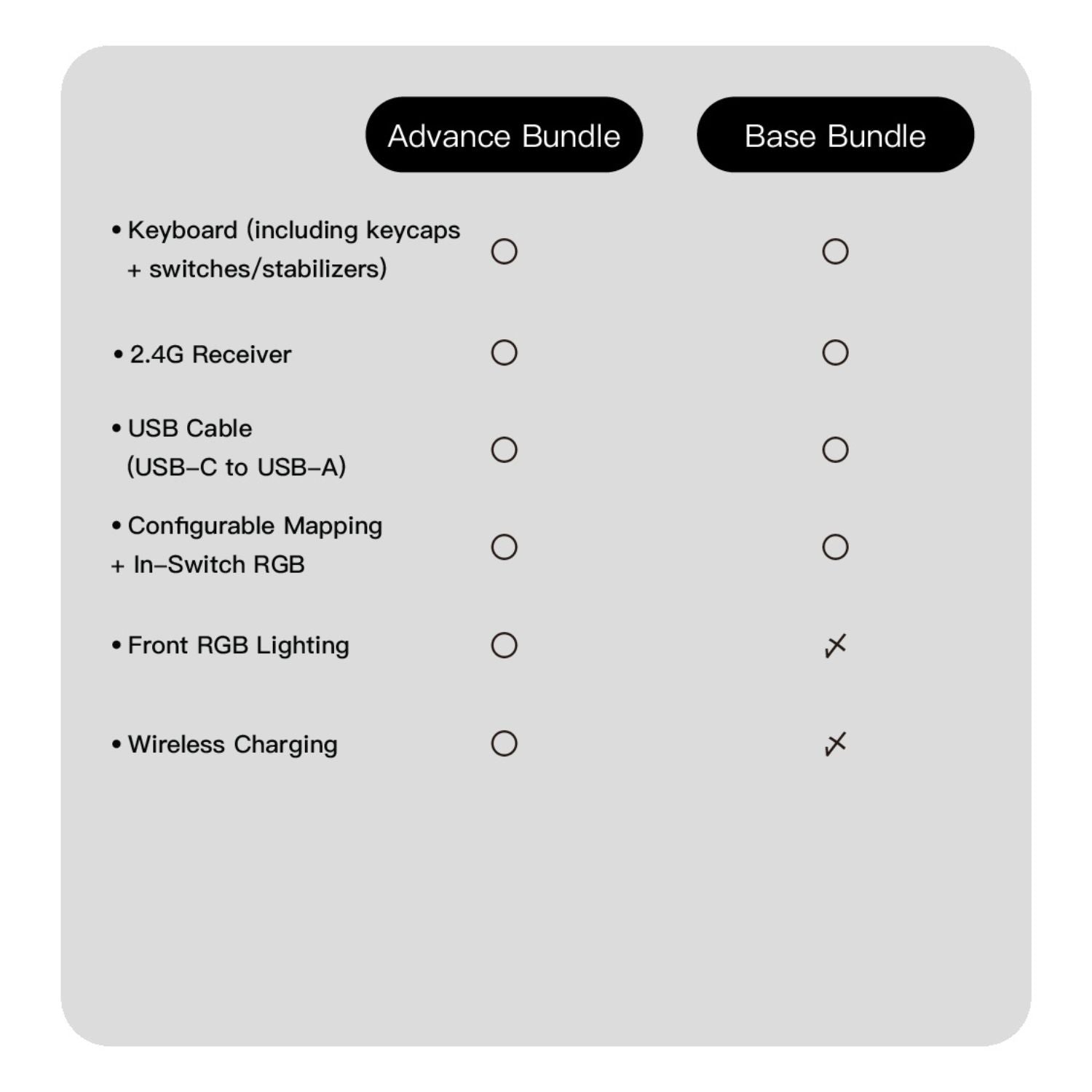

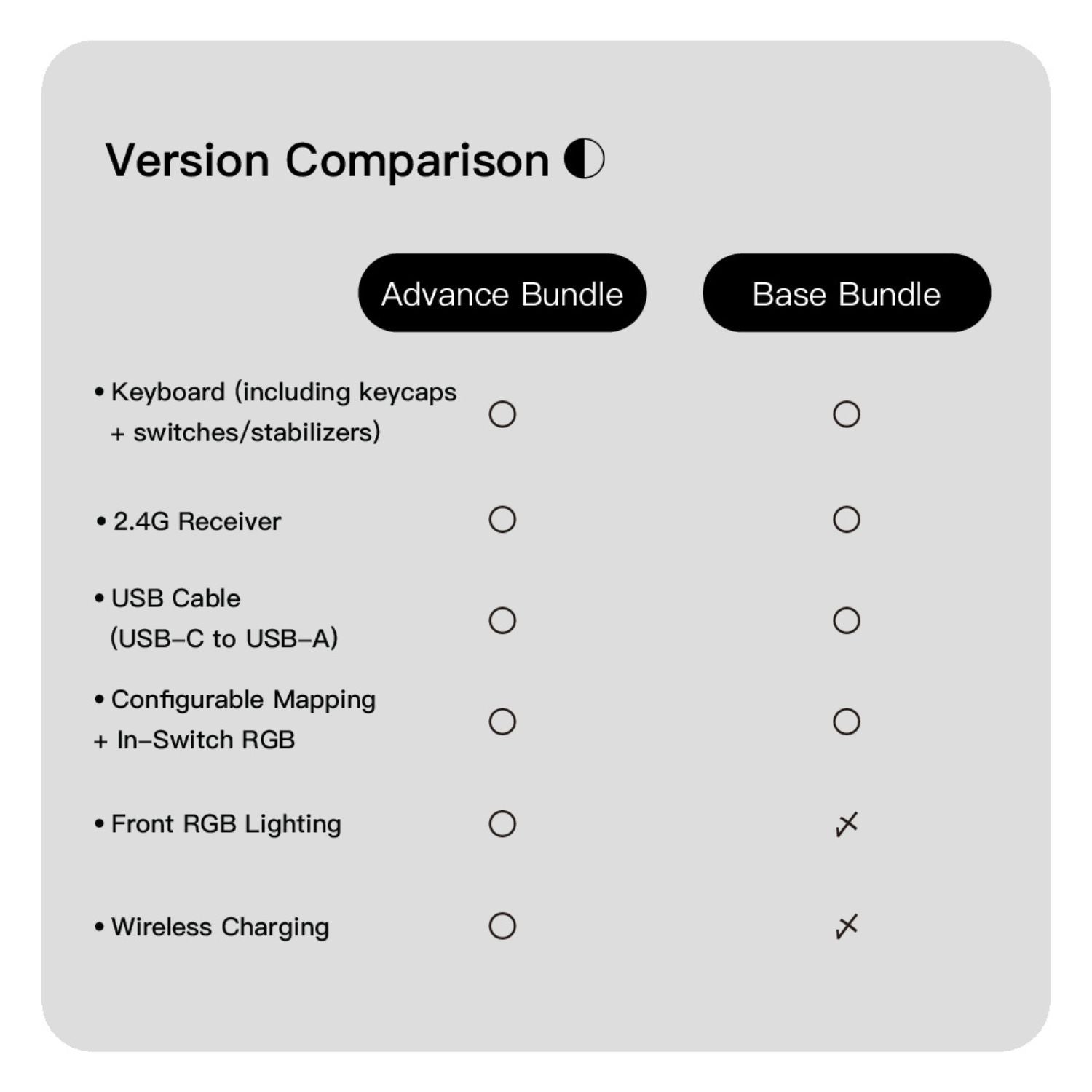

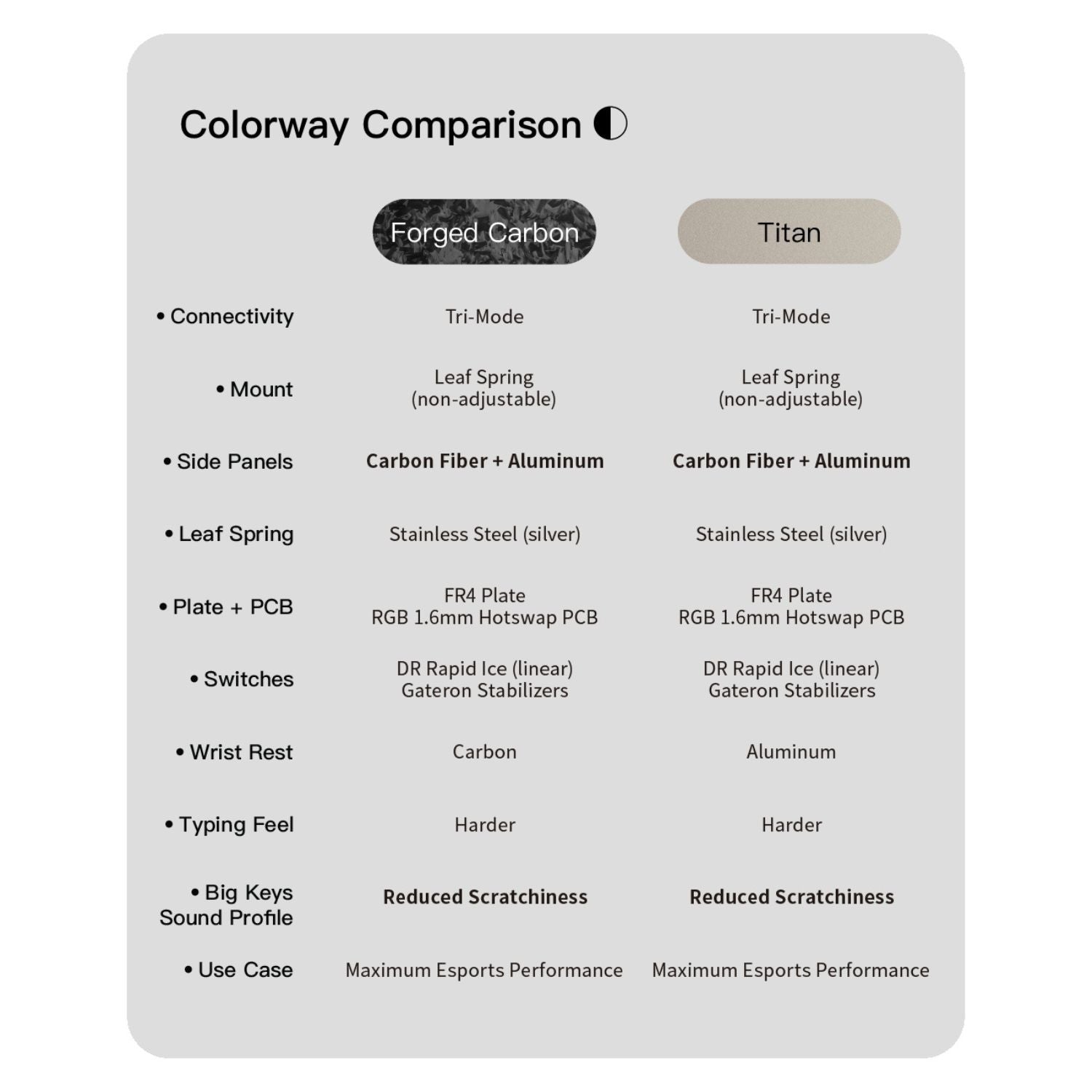

Color & Version Comparison
FAQ
Do I need to pay tax & customs?
Import duties, taxes, and charges are not included in the item price. Please check with your country's customs office for the details.
*In case of non-quality problems, the user is responsible for the customs and shipping costs of the return.
Does acrylic get scratched easily?
We use hardened PMMA acrylic, which has a surface hardness of 3H for good scratch resistance. Every piece of acrylic on the Black Diamond 75 is polished by hand.
Please do not wipe the acrylic surfaces using alcohol, as to avoid damage to the acrylic surfaces.

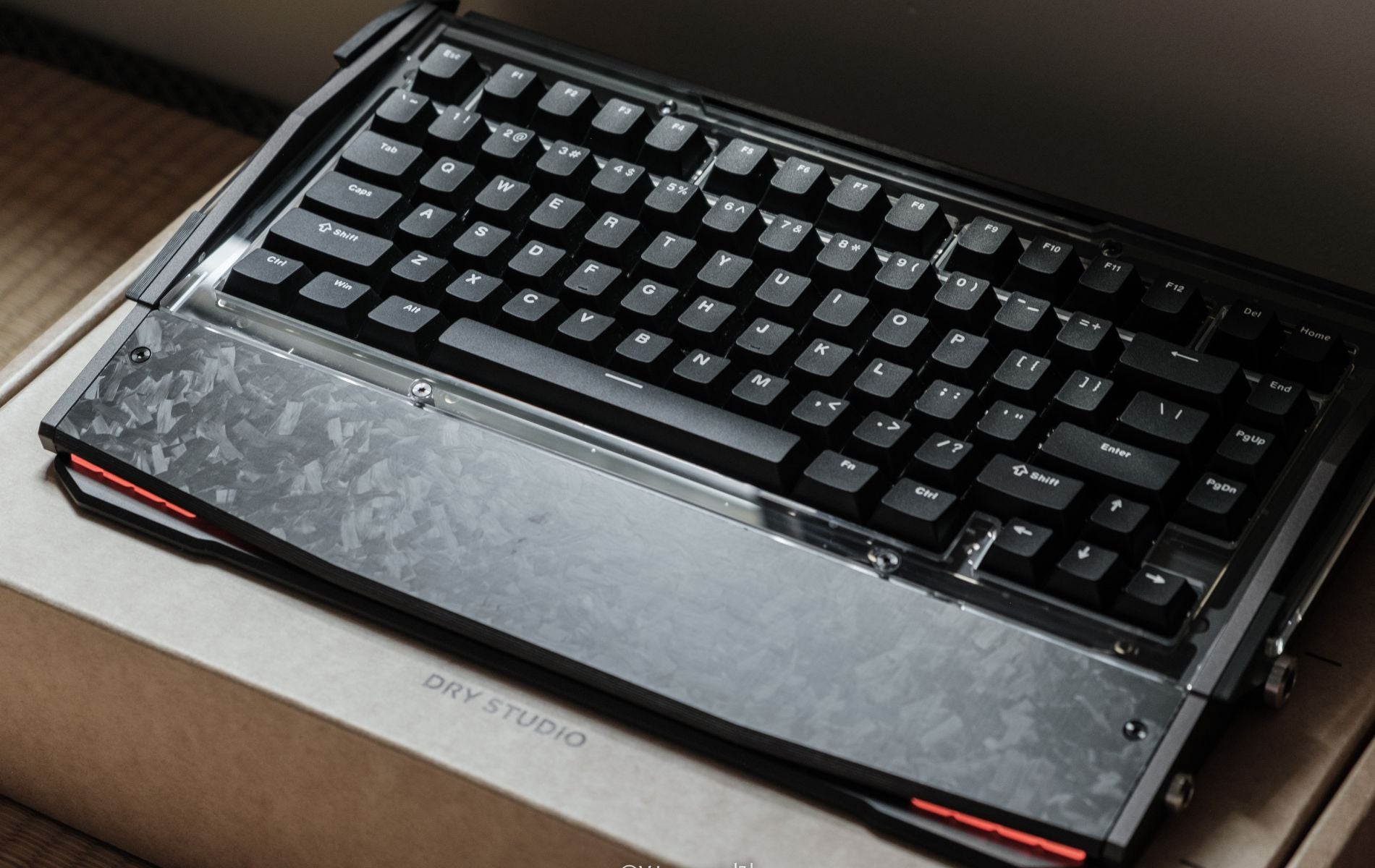

Is Black Diamond 75 Carbon crafted from real carbon fiber?
Yes, Black Diamond 75 Carbon is crafted from real carbon fiber. It is not a carbon print or wrap. Multi-layer extrusion is used in the manufacturing process.
Carbon utilizes carbon fiber and high-transparency acrylic case parts. The internal frame is made from black anodized aluminum alloy.

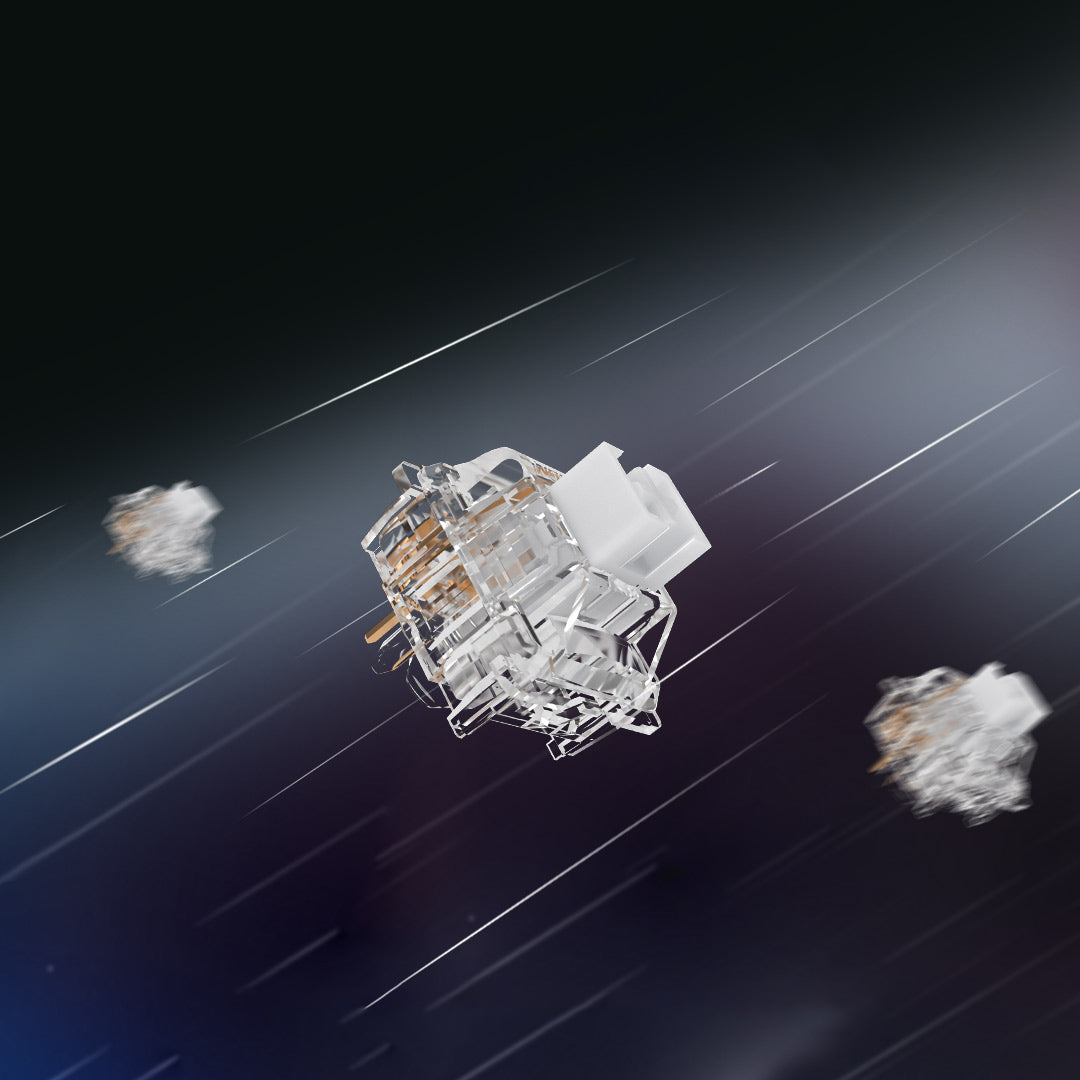

Are DR Rapid Ice switches linear or tactile?
DR Rapid Ice are linear switches with an actuation travel of 1.0mm, an actuation force of 40gf and a bottom-out force of 45gf.
Combined with stainless steel leaf springs for improved finger dampening, there's less strain on your fingers during long gaming sessions.
Can you change the color of the dual headlight RGB of the Advance Version?
Yes, this is possible.
Is N-key rollover supported?
Yes. No additional drivers are required.

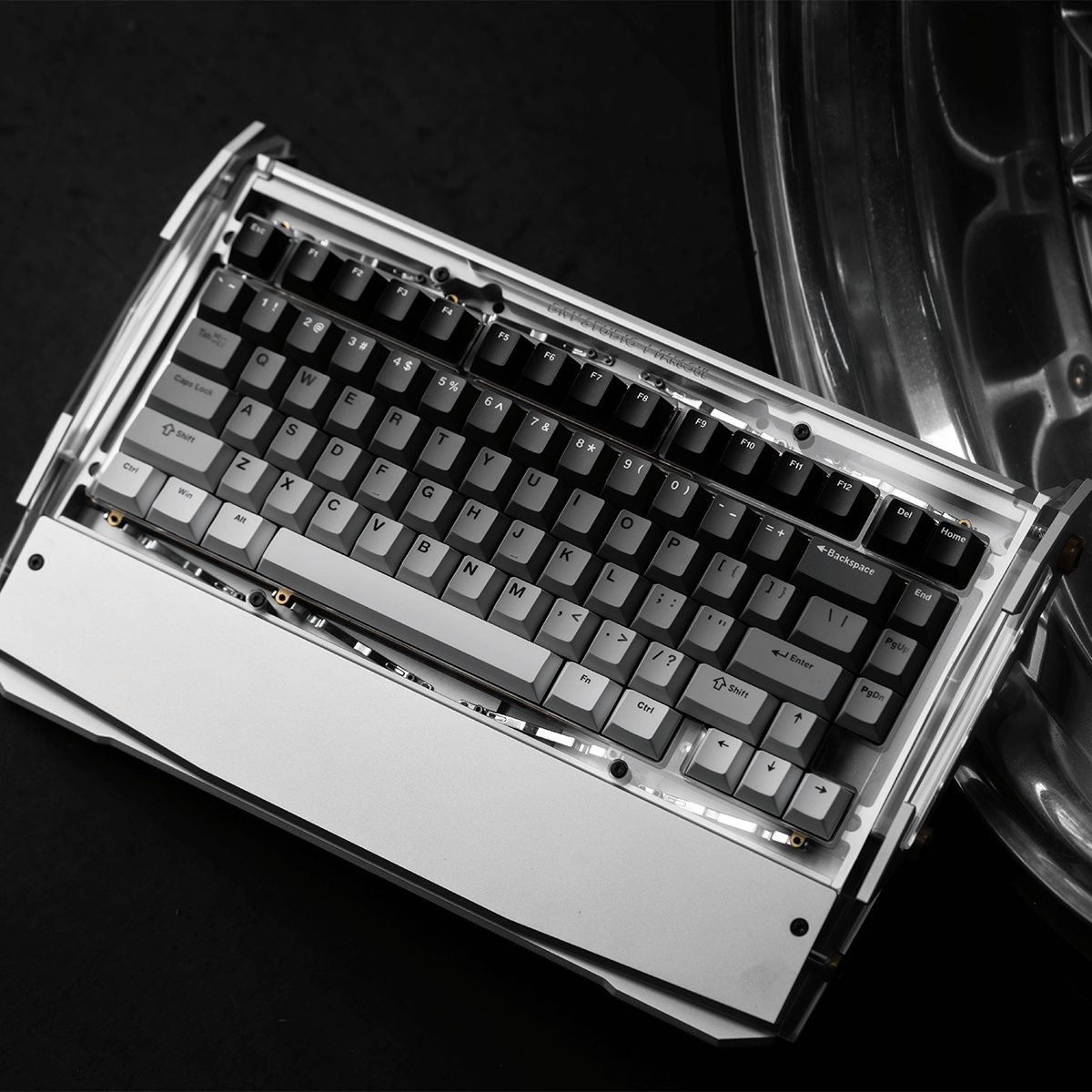

What material is Mithril (silver) crafted from?
The case parts are crafted from anodized aluminum alloy and high-transparency acrylic. The internal frame is made from silver anodized aluminum alloy.
Is the wrist rest integrated or is it detachable?
The wrist rest is integrated and can't be detached.
Carbon utilizes a carbon fiber wrist rest, and Mithril utilizes a silver aluminum alloy wrist rest.
What are the dimensions?
36*25*5 cm (14.2*9.8*2 inch).
How many keys are there in total?
81 keys.
What is the manufacturing process of the keycaps?
PBT double-shot.
What are the specifications of the stabilizers used? Are they PCB-mount or plate-mount?
PCB-mount, 1.6mm, 2U*3, 6.25U*1.
Why is there an LED between the 6 and 7 keys that's constantly on?
This is the CAPS LOCK indicator, which can be disabled by pressing on the CAPS LOCK key.
How to remap keys?
1.Download AM Master from angrymiao.com/am-master and keep the keyboard connected to the computer via USB.
2. Enter diy.angrymiao.com and select the corresponding keyboard model in the top bar and navigate to the layer editing page.
3. After finishing editing, generate the JSON config file and download it.
4. Open AM Master, select your JSON config file and import it. 5. Wait until it's successfully configured.
How to apply custom RGB lighting effects?
Follow the same steps as with remapping keys, but instead navigate to the "In-Switch LED configuration" page through the link on the right bottom of the keyboard's DIY page.
How to switch between layers?
By default, you can switch to layer 2 by holding down the Fn key. You can also switch directly to corresponding layers by short pressing manually assigned layer keys. To create new layers, follow the same steps as with remapping keys. You can create a maximum of 7 layers.
Can you set macros?
Macro functionality is currently in development. RGB and key layout configurable via AM Master on Windows/macOS. All keys support remapping and assigning multimedia keys (except the Fn+Esc Power On combo), supports up to 7 layers.
Is a toolkit included in the package?
No.
Does the keyboard come with a USB cable?
Yes, a 1.5m USB cable for up to 100W (20V/5A) is included.
Does the keyboard come with a carrying case?
No.
Are other plate materials available?
Other plate materials are currently not available.
Can I modify the gear position of the leaf springs?
No.
Is 2.4G supported on this keyboard?
Yes, Black Diamond 75 supports Tri-Mode connectivity: wired, Bluetooth and 2.4G.
How to establish a 2.4G connection?
When using the latest firmware version, insert the 2.4G receiver into the computer and press Fn + 4. The 4 key will light up in green to indicate successful pairing.
Why can't I connect using 2.4G after restarting my computer?
Short press Fn + 4 to reconnect.

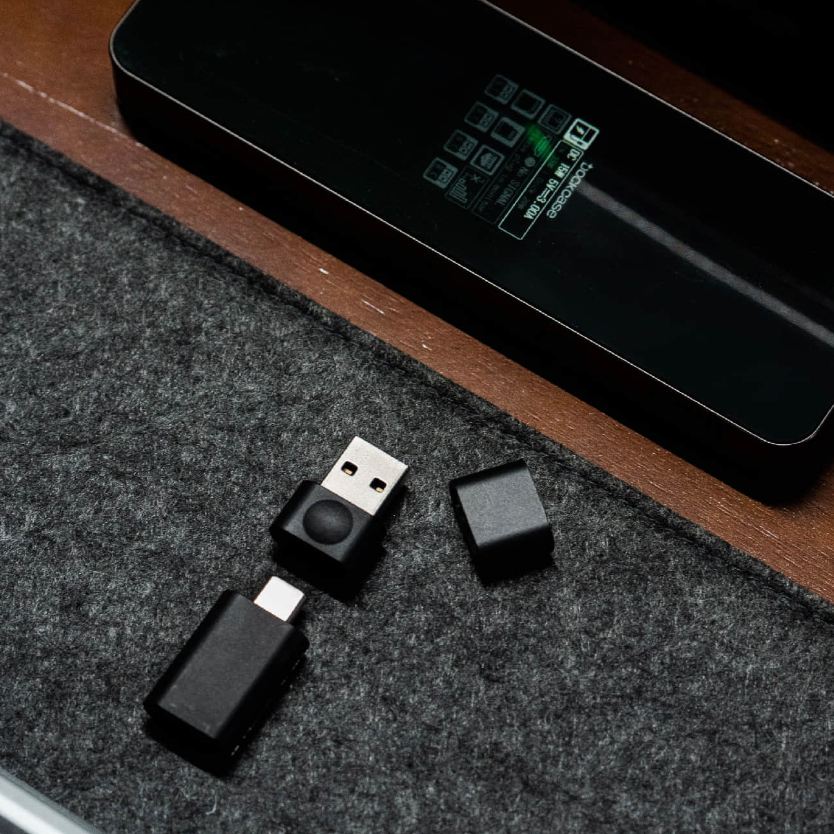

Does the 2.4G dongle have a USB Type-A or USB Type-C connector?
The 2.4G dongle comes with both connectors. You can choose one in accordance with your personal preference.
Does the 2.4G receiver come with an extension cable?
No.
Is there a storage compartment for the 2.4G dongle inside the keyboard?
No.
Does the keyboard go into standby mode automatically?
Wired mode: if the power is delivered to the keyboard, the keyboard will automatically stay in charging mode and RGB will stay on. If unplugged, the RGB will turn off automatically after 15 minutes.
Bluetooth mode: after 15 minutes, RGB will turn off automatically and Bluetooth stays connected. Press any key to wake up the keyboard.
2.4G mode: after 15 minutes, RGB will turn off automatically.
Do I need to press any key combo to switch from wireless to USB?
This is not needed. The keyboard automatically switches to wired mode when connecting the USB cable.
How long does the battery last?
When connected using 2.4G mode, the battery of Black Diamond 75 can last for up to 60 days on a single charge (RGB disabled, 8 hours of daily use and 16 hours standby).
Is there a Base Kit (without switches and keycaps)?
Black Diamond 75 is only available as Bundle, which includes switches and keycaps.
